Utilizing a shore-mounted compressor, these diffused air systems pump oxygen-filled air directly to the pond bottom. Since oxygen consumption is highest there, it's the perfect way to nourish aquatic life!
Ascending bubbles from the diffusers generate a "boiling" effect, encouraging ample circulation and avoiding water stratification. The 1/2 HP Rocking Piston Aerator Basic System Up To 2 Acres also provide oxygen crucial for a balanced and productive environment.

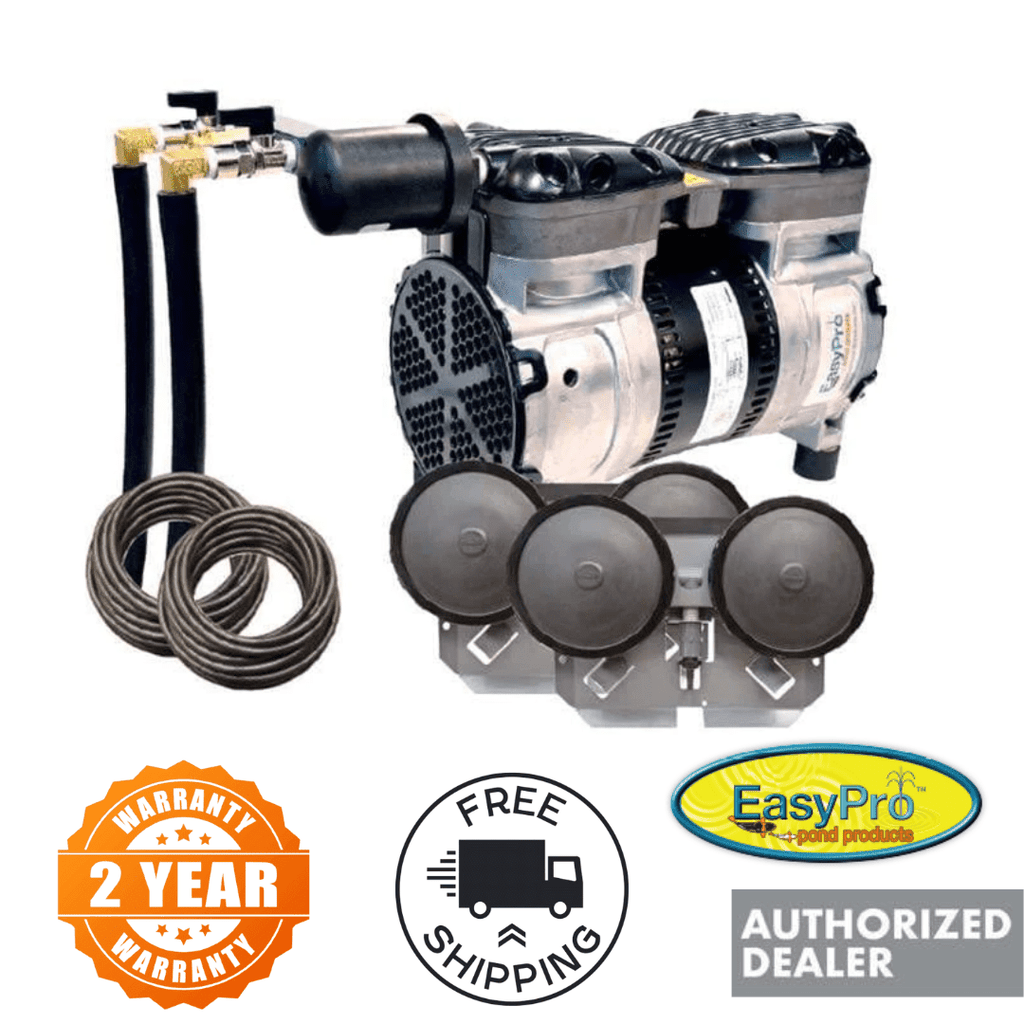

1/2 HP Rocking Piston Aerator Basic System Up To 2 Acres are ideal for pond aeration, as their oil-free design aerates without having to utilize electricity in the water. Set up your shore-mounted compressor to send air through tubing to a bottom-mounted diffuser for a safe, effective way to aerate your pond, and pick from 115v or 230v power options.
FREE SHIPPING!
OVERVIEW:
*Amps measured at 10' operating depth
**Cost figured at .09¢ per kWh, 24/7 operation, 10' operating depth. Actual electrical data will depend on operating conditions.
|
Part #
|

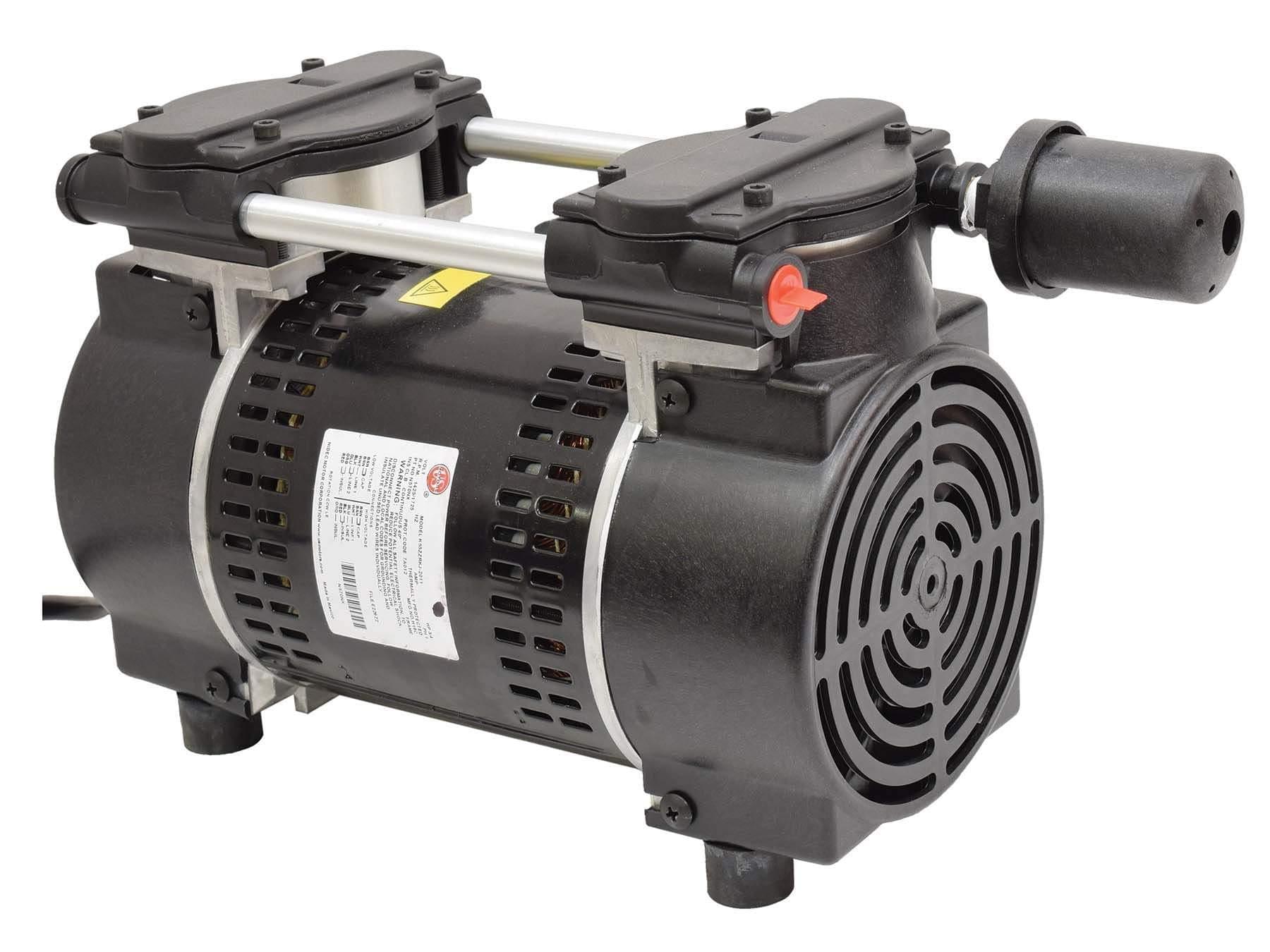

Compressor
|
Diffuser
|
Tubing
|
Tubing Length
|
|
PA65W
|
SRC50
|
QS2 (2)
|
3/8” Quick Sink
|
200’
|
|
PS65A
|
SRC50
|
QS2 (2)
|
---
|
---
|
|
PA65WLD
|
SRC50
|
---
|
3/8” Quick Sink
|
200’
|
|
PA65ALD
|
SRC50
|
---
|
---
|
---
|
Additional Information:
- Horsepower: 1/2 HP
- Voltage: 115v or 230v
-
Amps: 3.6/1.8 amps (at 10' operating depth)
- Maximum Air Flow (CFM): 4.5 cfm
- The maximum Depth: 50'
- Warranty: 2 Year on1/2 HP Rocking Piston Aerator System For Up To 2 Acres Compressors and 5 Year Warranty on Tubing, Diffusers, and Cabinet
-

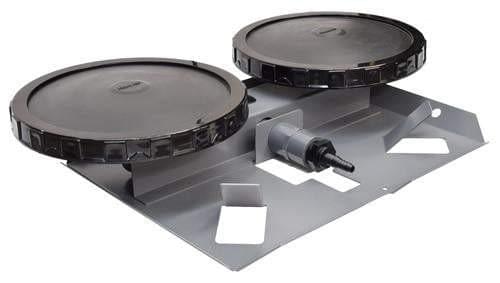

2-QS2 Dual Membrane Diffusers

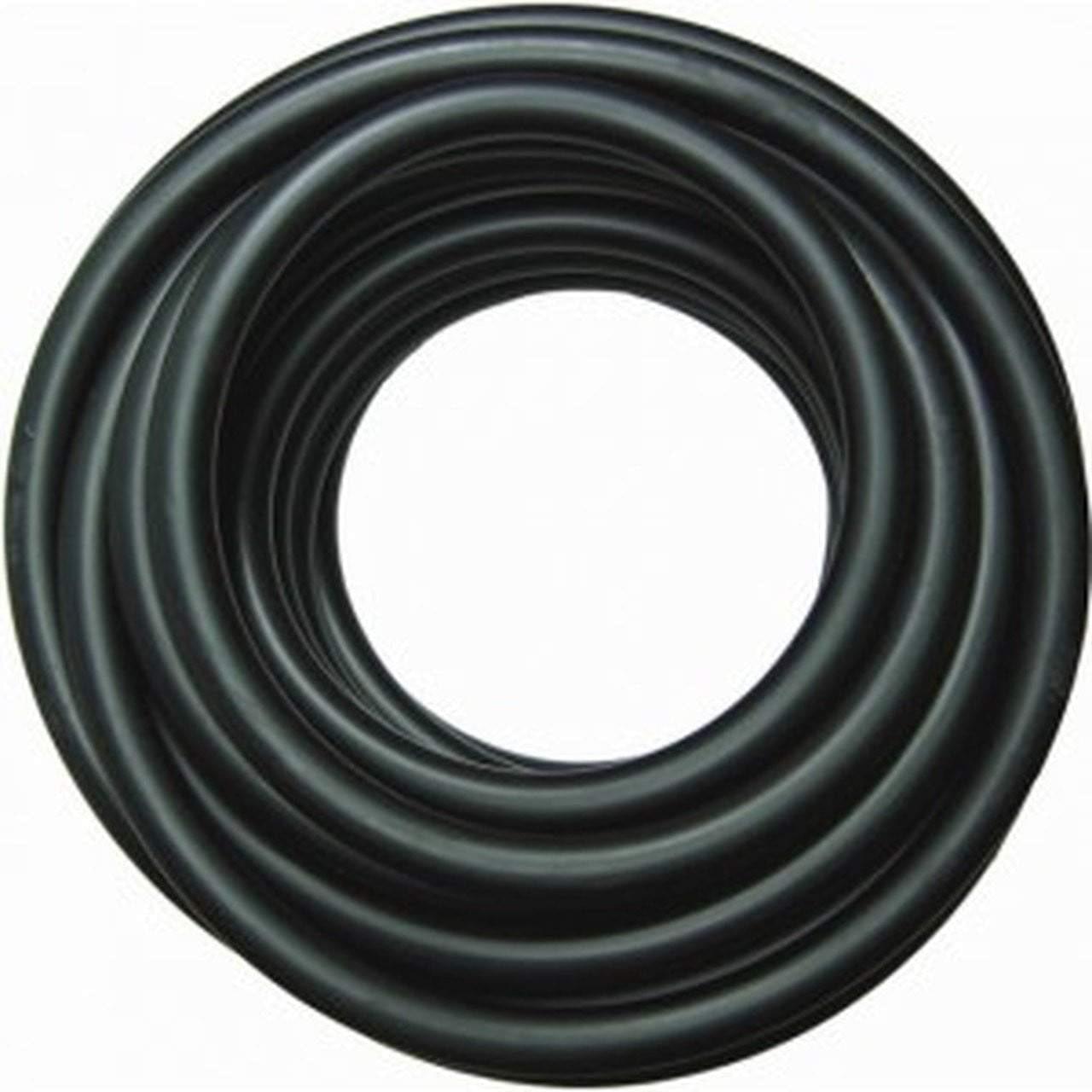

- Tubing: 200 ft of 3/8" Weighted Tubing
