1/2 HP Rocking Piston Aerator Deluxe System Up To 3 Acres-diffused air systems utilize a shore-mounted air compressor that pumps oxygen-containing air through a hose to a special diffuser lying on the pond bottom. Since the bottom of the pond is where the most oxygen is consumed, it is an ideal way to deliver oxygen to where it’s needed the most.
As the bubbles rise out of the diffusers they create a “lifting” or boiling action, which creates considerable circulation throughout the pond. This circulation helps to prevent water stratification. The added oxygen, and equally important, the circulation created by these devices help to create a stable and productive ecosystem.

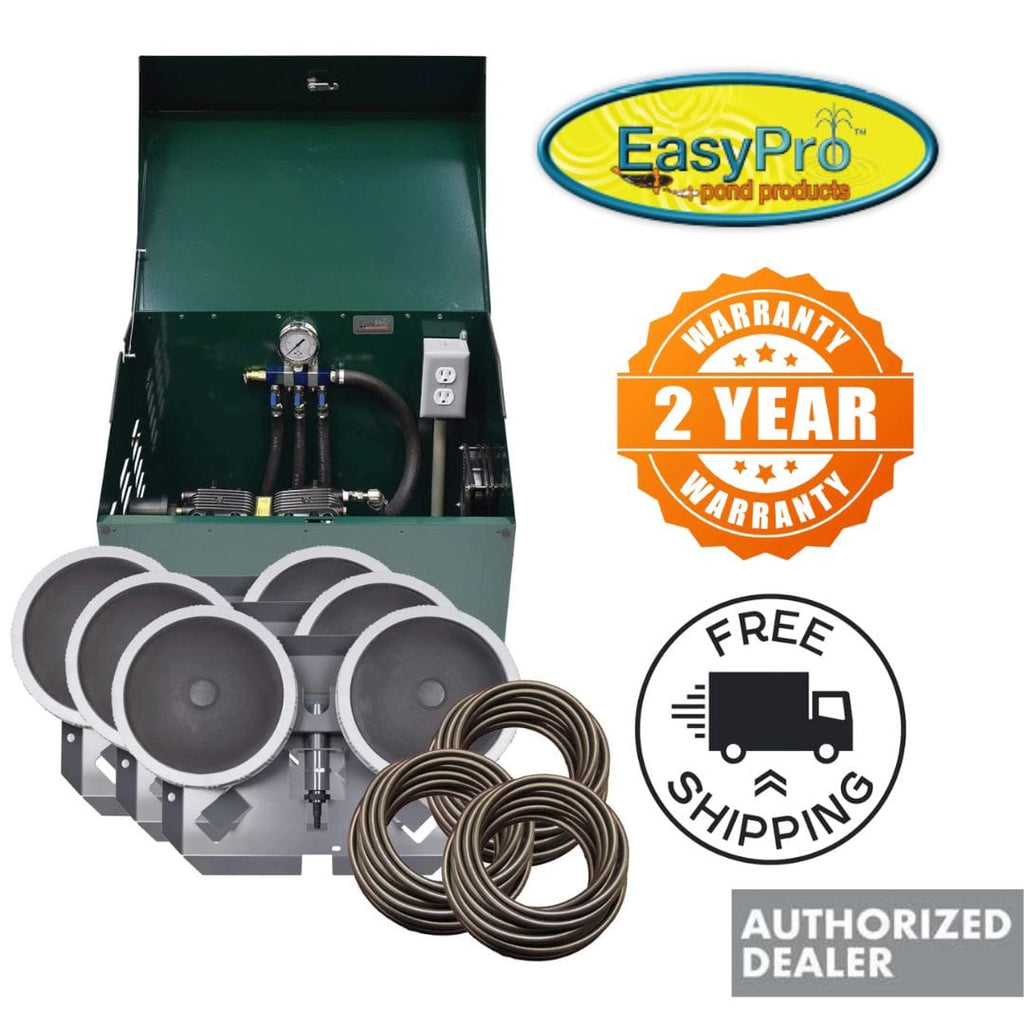

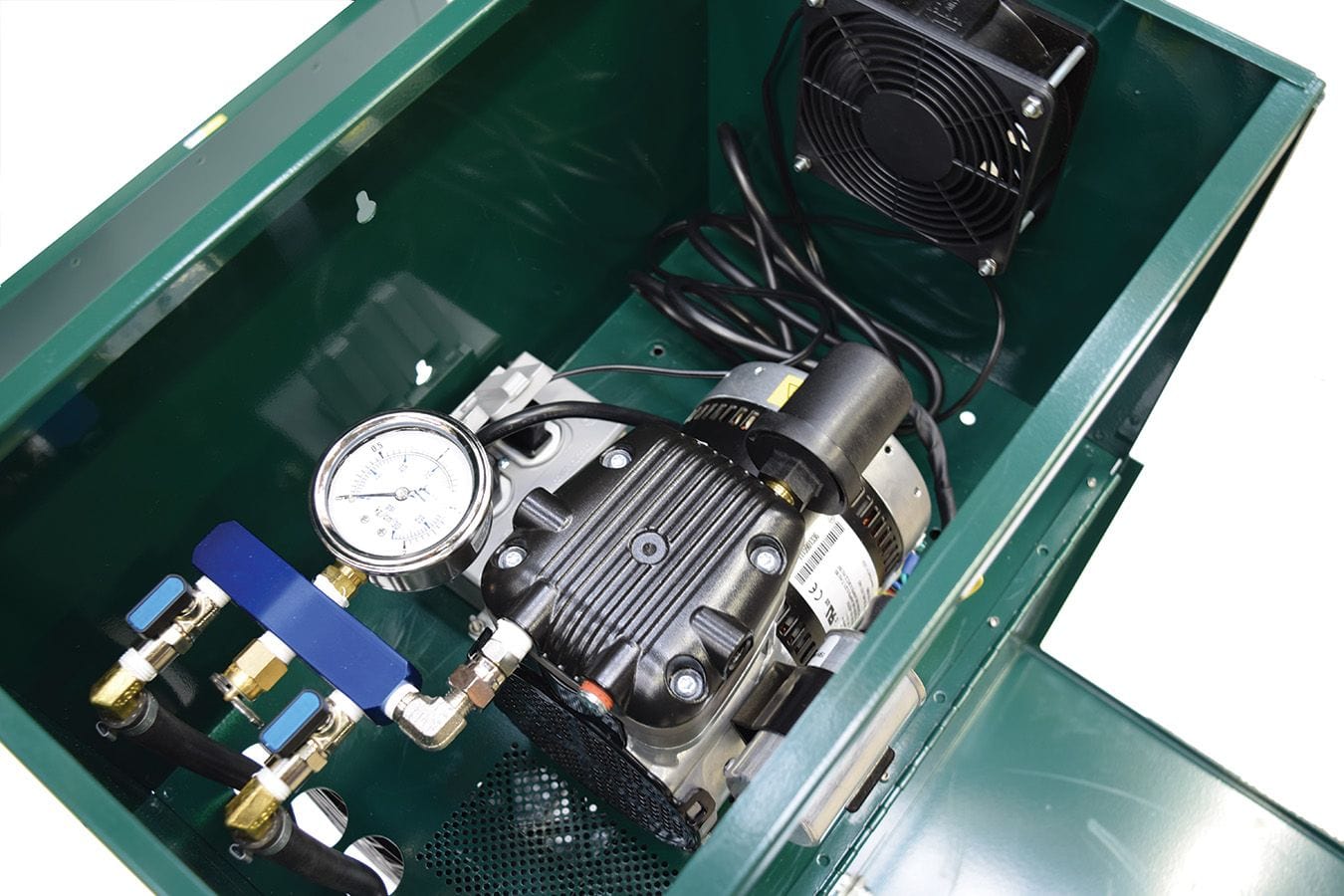

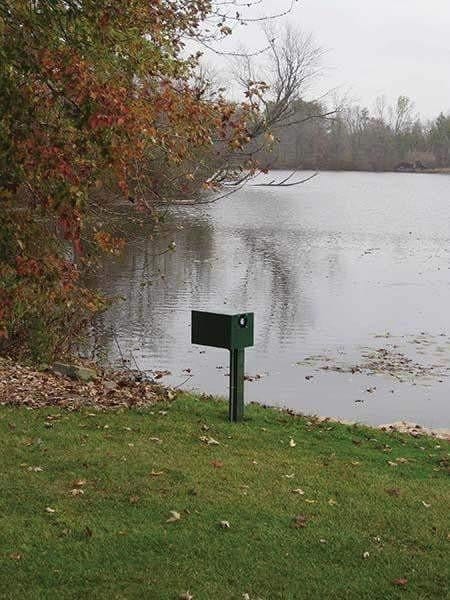

1/2 HP Rocking Piston Aerator Deluxe System Up To 3 Acres are ideal for pond aeration systems. The oil-less design safely aerates ponds with no electricity in the water. The shore-mounted compressor sends air through tubing to a bottom-mounted diffuser for a safe, effective way to aerate ponds. 1/2 HP Rocking Piston Aerator Deluxe System Up To 3 Acres are available in 115v or 230v.

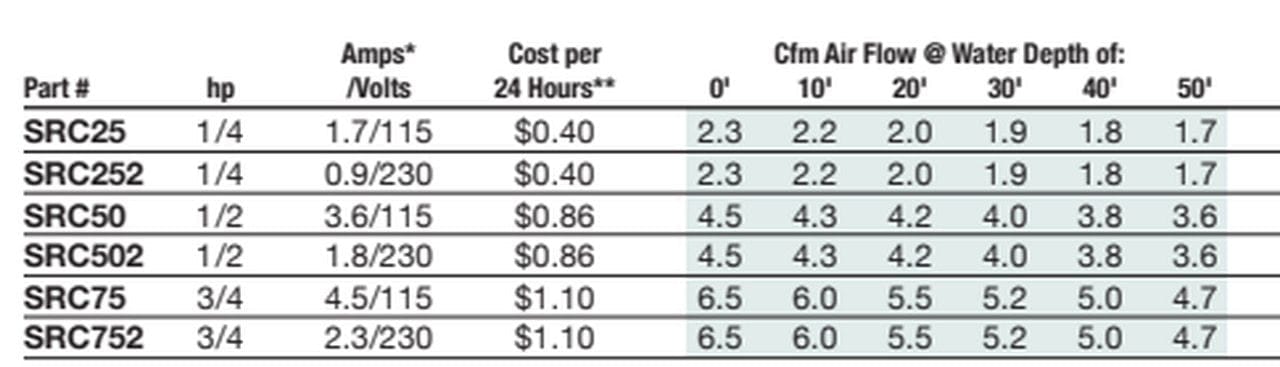

*Amps measured at 10' operating depth
**Cost figured at .09¢ per kWh, 24/7 operation, 10' operating depth. Actual electrical data will depend on operating conditions.
|
Part #
|

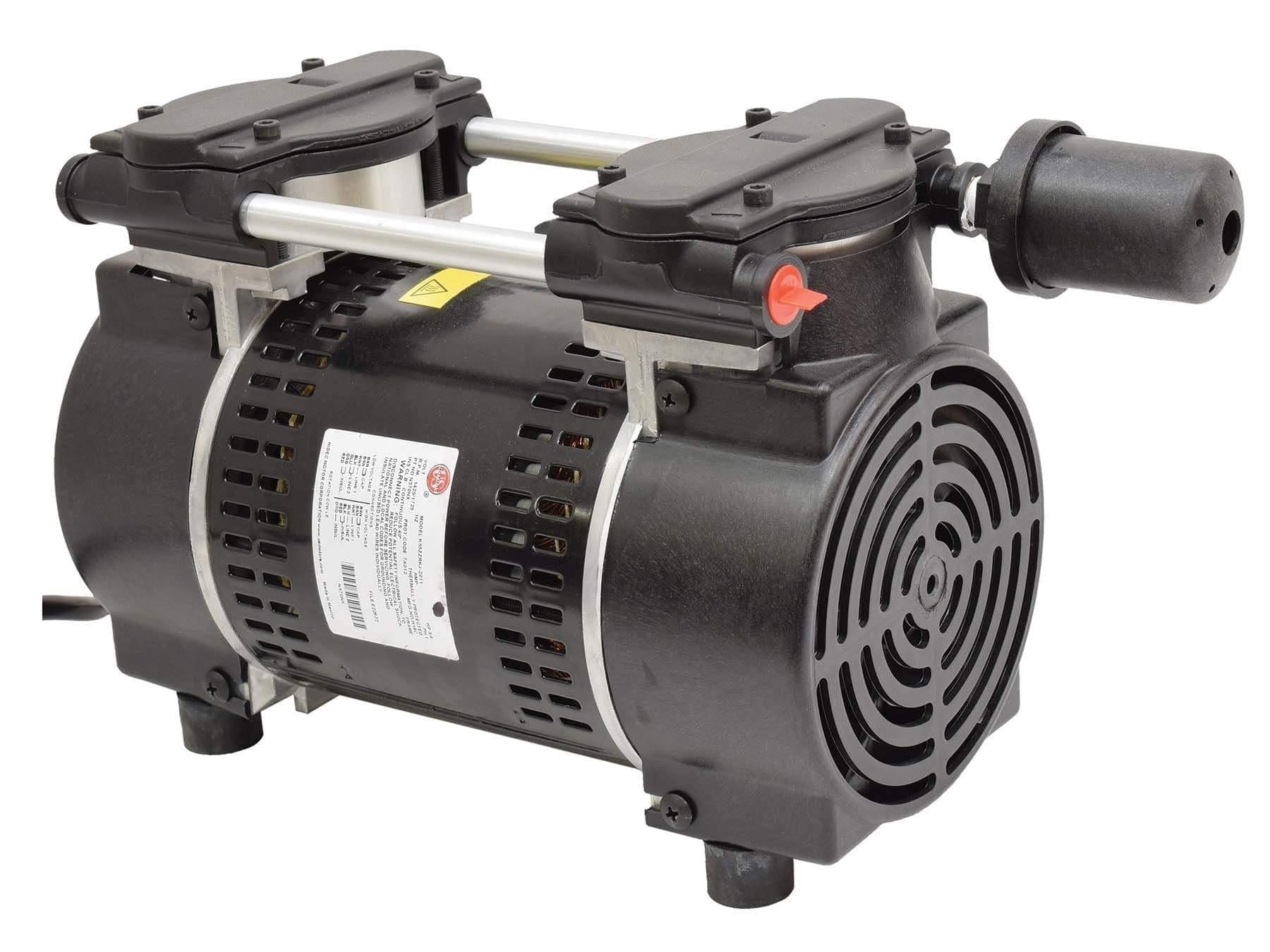

Compressor
|

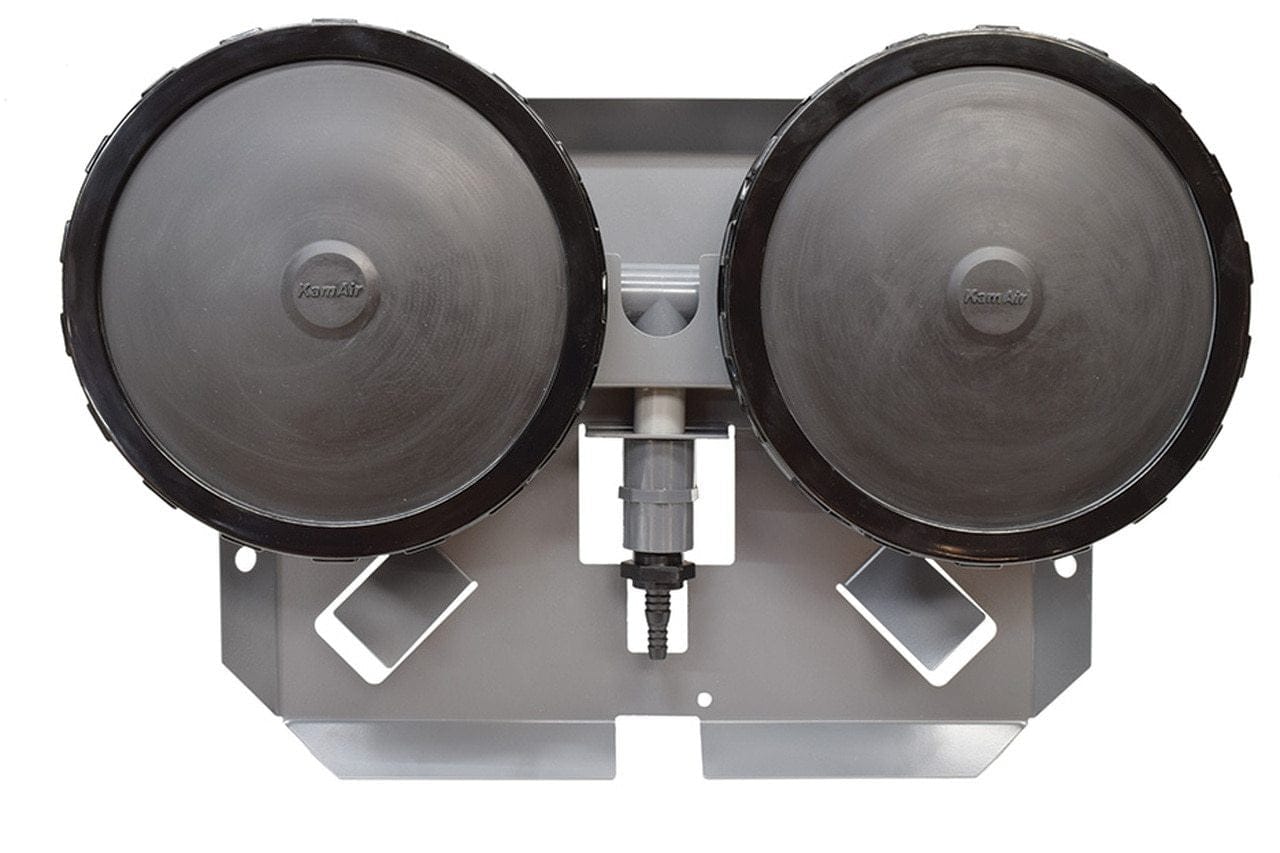

Diffuser
|
Tubing
|
Tubing Length
|
Cabinet
|
|
PA66W
|
SRC50
|
QS2 (3)
|

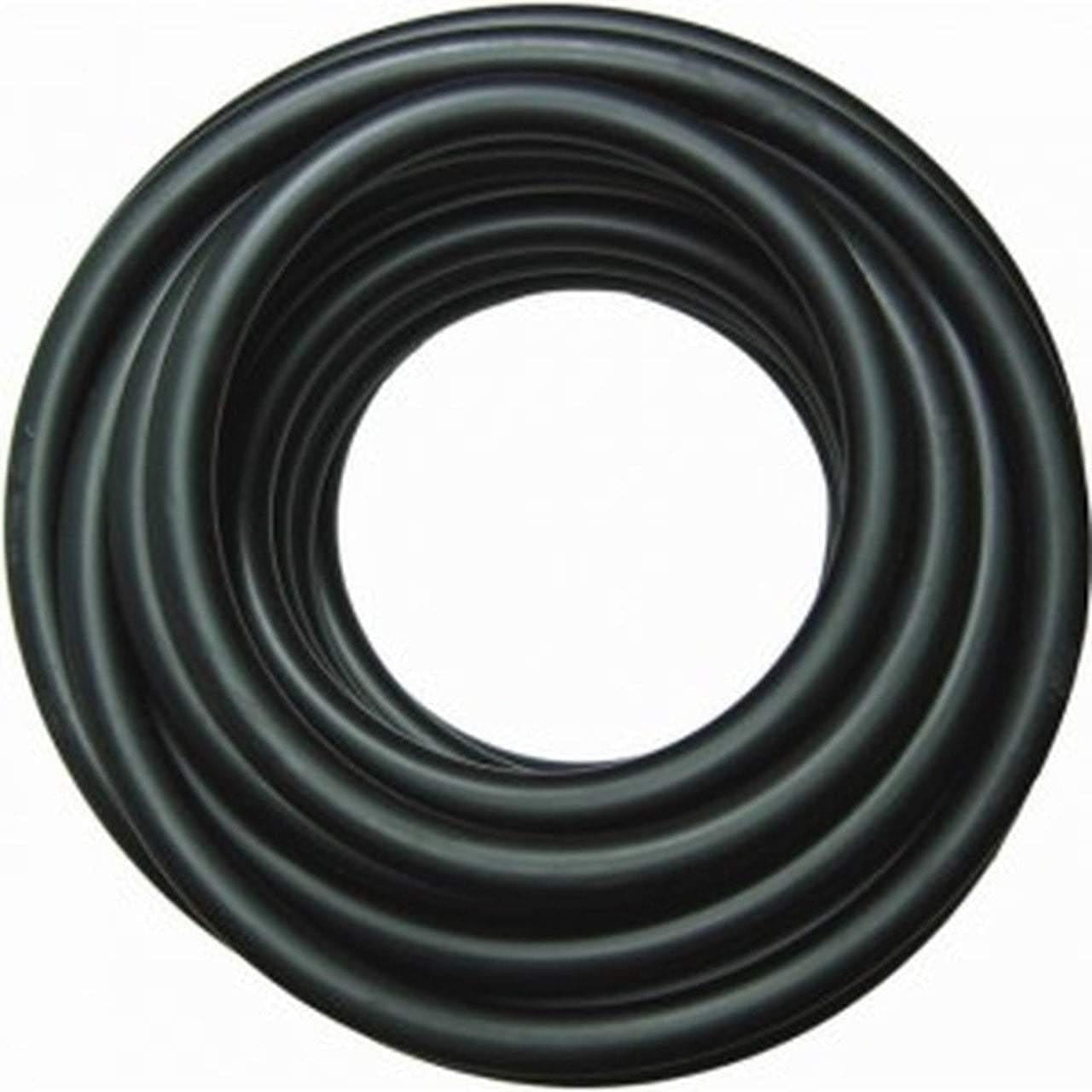

3/8” Quick Sink
|
300’
|
---
|
|
PA66A
|
SRC50
|
QS2 (3)
|
---
|
---
|
---
|
|
PA66WLD
|
SRC50
|
---
|
3/8” Quick Sink
|
300’
|
---
|
|
PA66ALD
|
SRC50
|
---
|
---
|
---
|
---
|
Additional Information:
- Approximately 1.5cfm air flow per diffuser

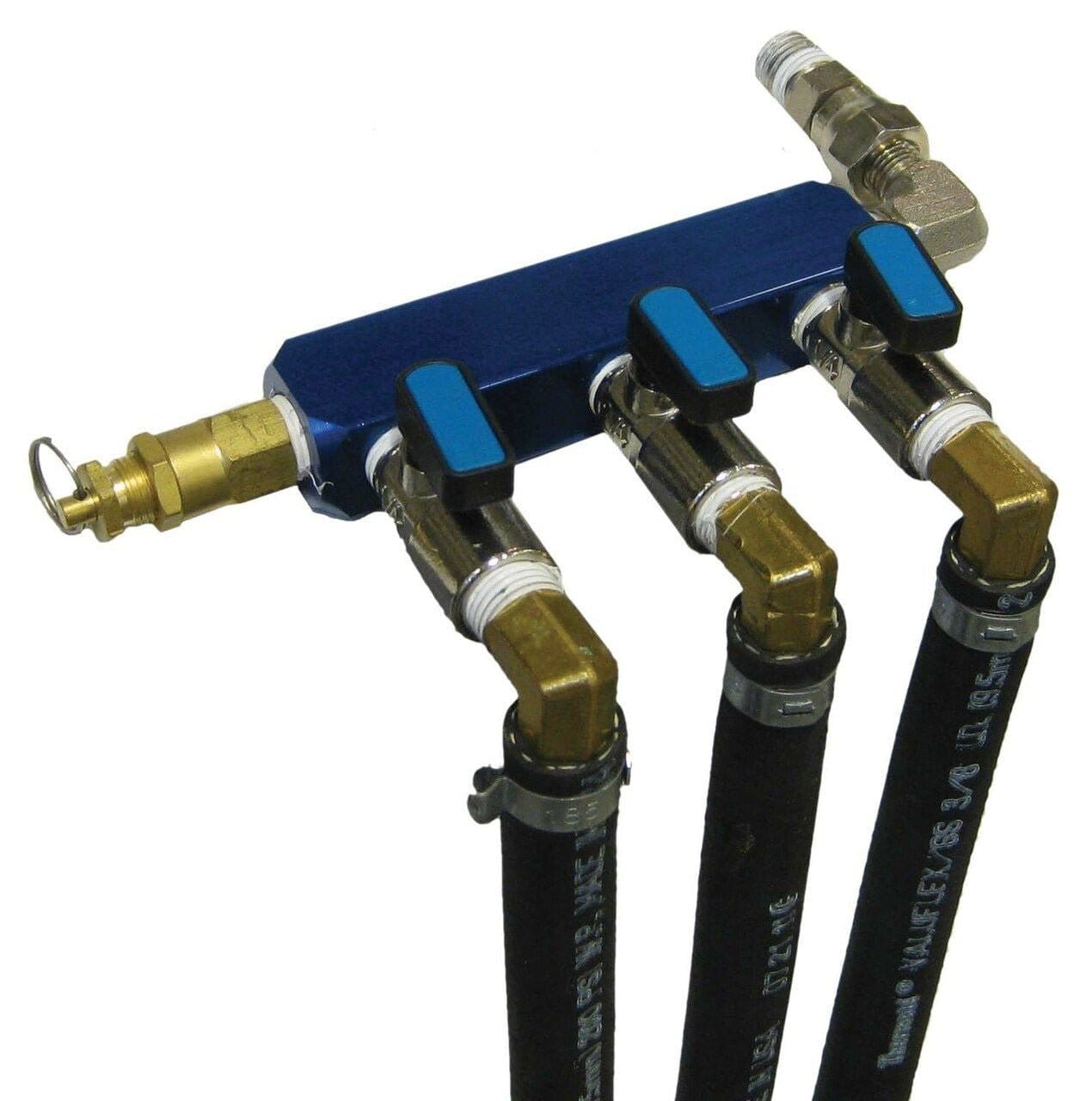

- 3-valve manifold with pressure relief
