EasyPro Stratus Rocking Piston Aerator System 1/4 HP - Reliable Pond Aeration Up to 1 Acre
The EasyPro Stratus Rocking Piston Aerator System delivers reliable pond aeration for ponds up to 1 acre and depths to 50 feet. This basic system uses proven rocking piston technology to provide 2.3 CFM of airflow with excellent deep-water capability. The shore-mounted compressor keeps all electrical components safely away from water while delivering oxygen exactly where it's needed most - at the pond bottom. Perfect for deeper ponds where maximum depth capability is essential.
Smith Creek Field Note | System Sizing: "Based on over 30 years of hatchery data, we consider a 1-acre limit the gold standard for maintaining optimal fish health and biological turnover with this unit. For long, narrow, or 'L-shaped' ponds under one acre, we recommend the PA34-2 (Dual Diffuser) configuration. This allows you to split the 1/4 HP power between two diffusers to eliminate dead zones and ensure total circulation without requiring a larger motor."
Choose Your System Configuration:
| Model | Voltage | Compressor | Diffusers | Tubing | Best For |
|---|---|---|---|---|---|
| PA34-2 | 115V or 230V | ✅ SRC25 | ✅ (2) QS1 | ❌ None | Have tubing or want custom length |
| PA34-2LD | 115V or 230V | ✅ SRC25 | ❌ None | ❌ None | Have diffusers & tubing, need compressor only |
Select your model and voltage at checkout. All models available in both 115V (standard household) and 230V (commercial/industrial) configurations.
Why Choose the EasyPro Stratus Rocking Piston System:
- Deep Water Capability: Aerates ponds up to 50 feet deep - ideal for deeper ponds
- Proven Technology: Rocking piston design has been used successfully for decades
- Dual Voltage Options: Choose 115V or 230V to match your electrical setup
- Shore-Mounted Safety: No electricity in the water - compressor stays on shore
- Dual Diffuser System: (2) QS1 diffusers provide coverage for up to 1 acre
- Energy Efficient: Low operating cost for 24/7 operation
- Easy Installation: Basic system design for straightforward setup
- Reliable Performance: Designed for continuous 24-hour operation
- Versatile Application: Works for residential, farm, and fish ponds
Complete System Specifications:

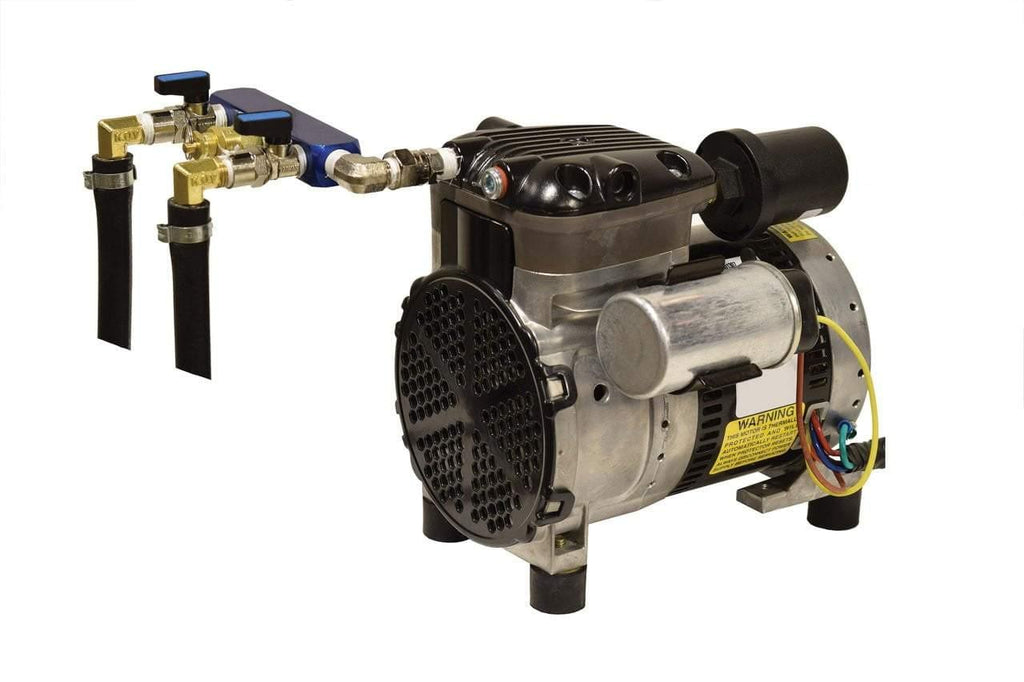

SRC25 Stratus GEN 2 Rocking Piston Compressor:
- Motor: 1/4 HP
- Voltage Options: 115V or 230V (select at checkout)
- Amperage (at 10' depth): 1.7 amps (115V) / 0.9 amps (230V)
- Maximum Airflow: 2.3 CFM
- Maximum Depth: 50 feet
- Coverage: Up to 1 acre
- Design: Rocking piston technology
- Operation: Continuous 24-hour duty cycle
- Mounting: Shore-mounted (no electricity in water)

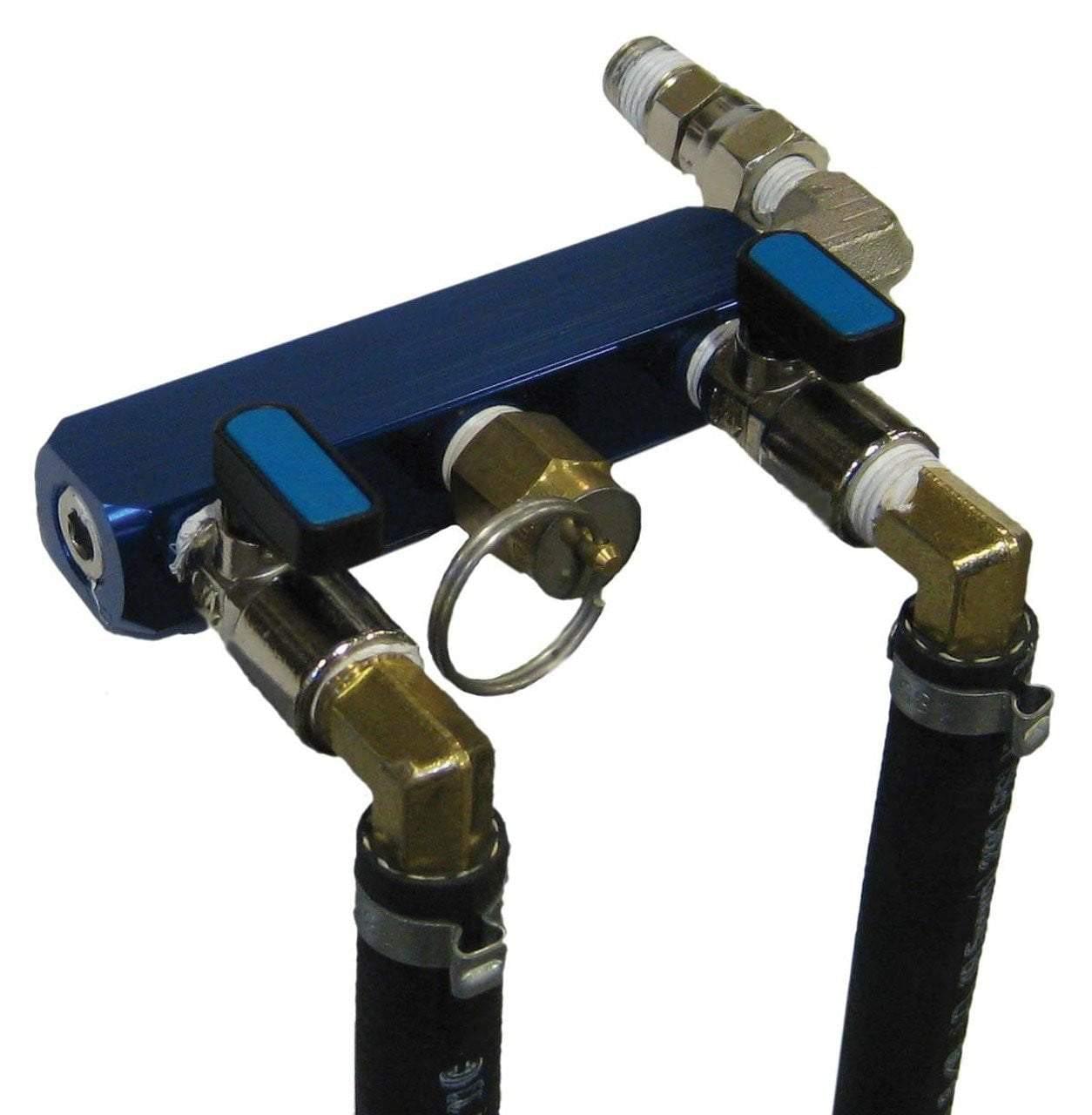

Dual Air Outlet Valve Assembly:
- Outlets: Two independent air outlets
- Connections: 3/8" hose adapters
- Pressure Relief Valve: Built-in overpressure protection
- Control: Independent valve control for each diffuser

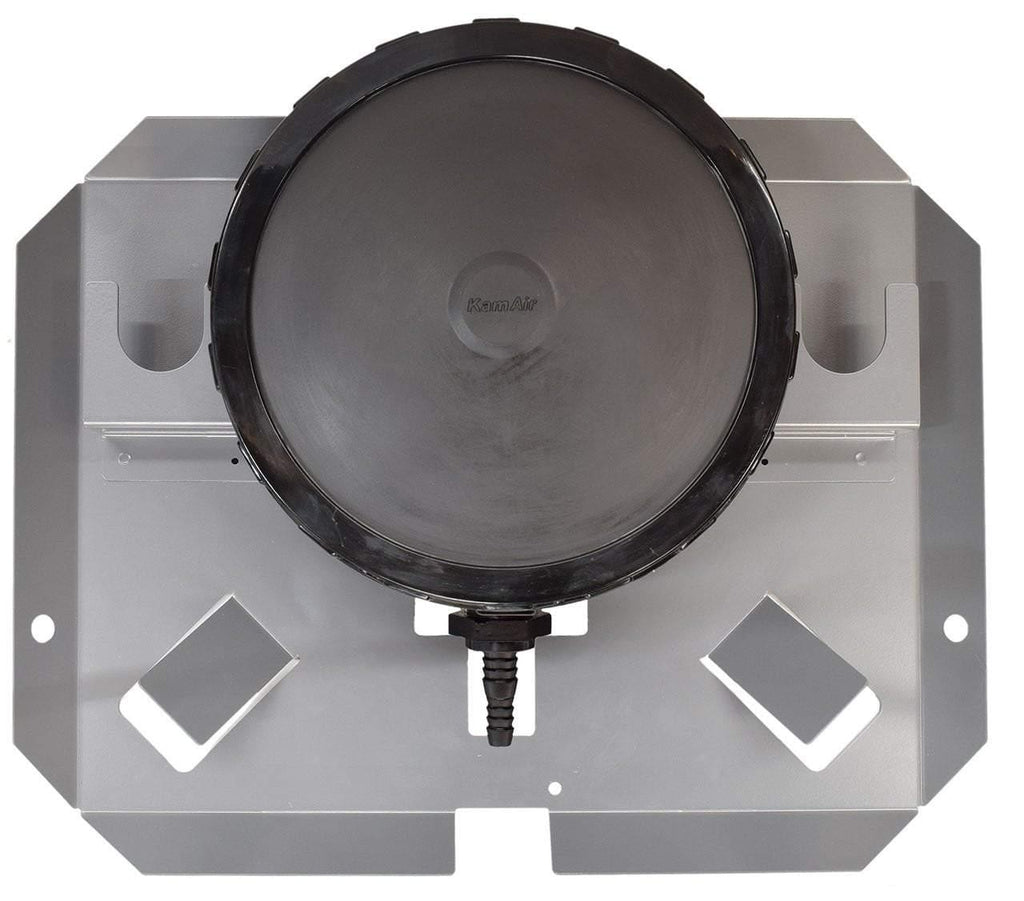

QS1 Quick Sink Diffusers (PA34-2 model only):
- Quantity: (2) single membrane diffusers included
- Type: Quick Sink weighted diffusers
- Design: Self-weighted for easy deployment
- Membrane: Single membrane design
- Bubble Pattern: Fine bubble diffusion
Additional Components Included:
- Air Filter (GAF2): Protects compressor from debris
- Fittings & Clamps Package: All necessary connection hardware
What's Included with Each Model:

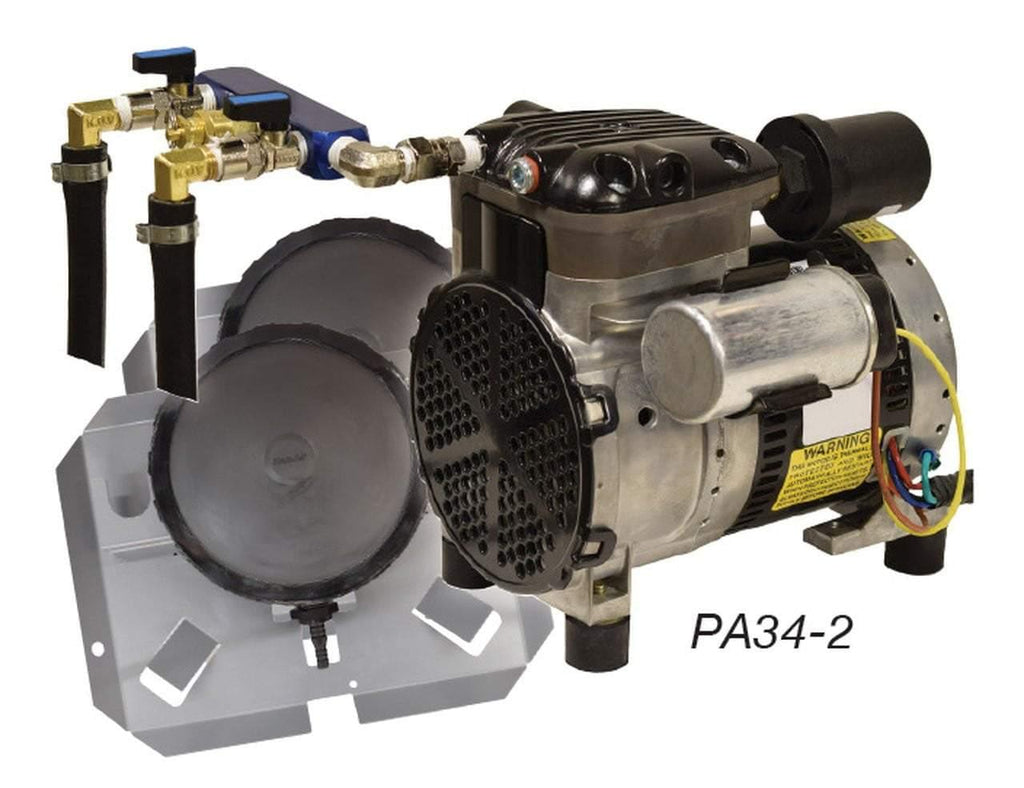

PA34-2 - Complete System (115V or 230V):
- ✓ SRC25 1/4 HP Stratus GEN 2 rocking piston compressor (your voltage choice)
- ✓ Dual air outlet valve with 3/8" hose adapters
- ✓ Pressure relief valve
- ✓ (2) QS1 Quick Sink single membrane diffusers
- ✓ Air filter (GAF2)
- ✓ Fittings and clamps package
- ❌ Tubing NOT included - order separately
PA34-2LD - Compressor Only (115V or 230V):
- ✓ SRC25 1/4 HP Stratus GEN 2 rocking piston compressor (your voltage choice)
- ✓ Dual air outlet valve with 3/8" hose adapters
- ✓ Pressure relief valve
- ✓ Air filter (GAF2)
- ✓ Fittings and clamps package
- ❌ Diffusers NOT included - order separately
- ❌ Tubing NOT included - order separately
115V vs 230V - Which Should You Choose?
| Feature | 115V (Standard) | 230V (Commercial) |
|---|---|---|
| Best For | Residential installations, standard outlets | Commercial, industrial, or dedicated circuits |
| Outlet Type | Standard household outlet | Requires 230V outlet (like dryer/AC) |
| Amperage Draw (at 10') | 1.7 amps | 0.9 amps (lower draw) |
| Performance | Identical - same 2.3 CFM airflow | Identical - same 2.3 CFM airflow |
| Installation | Plug and play | May require electrician |
Installation Guide:
What You'll Need:
- Shore location near pond
- 115V or 230V outdoor electrical outlet (GFCI recommended)
- 3/8" weighted or Quick Sink tubing (order separately)
- Basic hand tools
Installation Steps:
- Verify Voltage: Confirm you ordered correct voltage for your electrical setup
- Choose Location: Select shore location protected from weather if possible
- Position Compressor: Place SRC25 compressor on stable, level surface
- Connect Power: Plug into appropriate voltage GFCI outlet
- Attach Tubing: Connect 3/8" tubing to dual outlet valve adapters
- Run Tubing to Pond: Lay tubing from compressor to pond
- Attach Diffusers: Connect QS1 diffusers to tubing ends (PA34-2 model)
- Deploy Diffusers: Place diffusers in desired pond locations (Quick Sink design sinks automatically)
- Open Valves: Turn on outlet valves to start airflow
- Verify Operation: Look for bubbles at diffuser locations
Smith Creek Field Note | Placement Strategy: "For maximum circulation and oxygen transfer, position your diffusers in the deepest areas of the pond. While standard diaphragm pumps struggle as depth increases, this rocking piston design is specifically engineered to handle depths up to 50 feet, ensuring full vertical mixing and high-volume turnover from the bottom up."
Smith Creek Field Note | Safe Start-Up Protocol: "If you are installing this system into an existing stagnant pond during warm weather, do not run it 24/7 immediately. Rapidly mixing stagnant bottom water can deplete oxygen and cause a 'turnover.' We recommend an acclimation period: Run the system for 30 minutes the first day, 1 hour the second, and double the time each day until you reach a full 24-hour cycle. This allows the pond’s ecosystem to adjust safely."
Pond Aeration Benefits:
- ✓ Increases Dissolved Oxygen: Essential for fish health and survival
- ✓ Reduces Algae Growth: Circulation prevents stagnant conditions
- ✓ Eliminates Stratification: Mixes water layers for uniform temperature
- ✓ Reduces Muck Buildup: Aerobic bacteria digest organic sediment
- ✓ Improves Water Clarity: Better circulation and biological activity
- ✓ Prevents Fish Kills: Maintains oxygen levels year-round
- ✓ Reduces Odors: Aerobic conditions eliminate foul smells
- ✓ Winter De-Icing: Rising bubbles prevent ice formation in northern climates
- ✓ Supports Beneficial Bacteria: Aerobic bacteria outcompete harmful anaerobic types
Perfect For:
- ✓ Deep Ponds: Handles depths up to 50 feet - ideal where rotary vane can't reach
- ✓ Ponds Up to 1 Acre: Effective coverage for smaller to medium ponds
- ✓ Farm Ponds: Livestock watering, irrigation ponds
- ✓ Fish Ponds: Supports healthy fish populations
- ✓ Residential Ponds: Decorative or recreational ponds
- ✓ Trout Ponds: Deep, cold water applications
- ✓ Spring-Fed Ponds: Often deeper with cold bottom water
Frequently Asked Questions
Which model should I choose - PA34-2 or PA34-2LD?
Choose PA34-2 if you need the complete system with (2) QS1 diffusers included - this is the most popular choice. Choose PA34-2LD if you already have diffusers or want to use a different diffuser type. Both models include the same SRC25 compressor and dual outlet valve. Note that neither model includes tubing - you'll need to order 3/8" weighted or Quick Sink tubing separately.
Should I choose 115V or 230V?
Choose 115V if you're installing at a residential location with standard household outlets - this is the most common choice. Choose 230V if you have a dedicated 230V circuit available or if you're installing in a commercial setting. Both voltages deliver identical performance (2.3 CFM airflow). The 230V version draws lower amperage (0.9 amps vs 1.7 amps at 10' depth).
What size pond will this system aerate?
The 1/4 HP rocking piston compressor aerates ponds up to 1 acre in size and up to 50 feet deep. For ponds larger than 1 acre, consider a larger HP system. The deep water capability (50 feet) makes this ideal for deeper ponds.
Why doesn't this system include tubing?
EasyPro offers this as a basic system so you can choose the exact tubing length and type you need for your specific pond. This prevents waste and allows customization. Order 3/8" weighted tubing or Quick Sink tubing separately based on your pond size and layout. Most 1-acre ponds need 100-200 feet of tubing total.
Can I run this system year-round?
Yes! The system is designed for continuous 24-hour, year-round operation. Winter aeration is especially important to prevent fish kills and maintain a gas exchange hole in ice. The rocking piston design is durable enough for continuous duty. In very cold climates, protect the compressor from extreme weather with a shelter or cabinet.
How loud is the rocking piston compressor?
Rocking piston compressors produce a moderate pulsing sound similar to a small air compressor. The noise level is acceptable for most installations. If noise is a concern, consider placement away from living areas or use a sound-dampening enclosure.
What maintenance does this system require?
Check and clean the air filter (GAF2) regularly - monthly during heavy use. Inspect tubing connections annually. Clean diffusers if airflow decreases. Follow manufacturer's maintenance schedule for best performance and longevity.
Can I add more diffusers to this system?
Yes! The dual outlet valve allows you to run two separate diffuser zones. You can add additional diffusers to each zone by using a splitter or manifold. However, the 2.3 CFM airflow limits how many diffusers you can effectively run. For ponds requiring more than 2-4 diffusers, consider a larger HP system.
What's the operating cost?
Operating cost depends on your local electricity rates and operating depth. At 10 feet depth, the system draws 1.7 amps (115V) or 0.9 amps (230V). At $0.09 per kWh, expect approximately $0.30-0.50 per day for 24/7 operation, or about $10-15 per month. Actual costs vary based on depth and local rates.
My pond is long and narrow—is this 1/4 HP enough? A: Yes. For irregular shapes, the dual-diffuser model is the best choice. It allows you to place oxygen sources at both ends of the pond, ensuring total circulation in corners that a single-diffuser system might miss.
How do I prevent gas buildup under the ice in winter? A: Move your diffusers to a shallow area (3–4 feet) and run the system on a timer for 1–2 hours daily. This keeps a hole open in the ice, allowing toxic gases to escape while protecting your fish from "super-cooled" water.
Does this require an enclosure? A: Yes. The compressor must be protected from direct rain and debris. We recommend an EasyPro SC18 or SC22 cabinet to ensure proper cooling and to protect your warranty.
How do I safely start my new aerator? A: To prevent "Pond Turnover," start slowly. Run the system for 30 minutes on Day 1, and double the runtime each day (1 hour, 2 hours, 4 hours, etc.) until you are running 24/7. This prevents the rapid mixing of low-oxygen bottom water with the rest of the pond, protecting your fish during the acclimation phase.
What tubing do I need to order?
You'll need 3/8" diameter tubing - either weighted poly tubing or Quick Sink self-sinking tubing. For a 1-acre pond, plan on 100-200 feet total (50-100 feet per diffuser). Quick Sink tubing is easier to install as it sinks on its own without additional weights.
Seasonal Operation Tips:
Spring (March-May):
- Increase aeration as water warms and fish become active
- Clean diffusers after winter if needed
- Check all connections and tubing for winter damage
- Replace air filter if dirty
Summer (June-August):
- Run system 24/7 during hot weather
- Warm water holds less oxygen - aeration is critical
- Watch for algae blooms
- Monitor compressor for overheating
Fall (September-November):
- Continue full-time operation as leaves fall
- Aeration helps digest falling organic matter
- Prepare for winter by checking all components
- Clean diffusers before winter
Winter (December-February):
- Keep system running to maintain gas exchange hole in ice
- Prevents toxic gas buildup under ice
- Critical for fish survival in frozen ponds
- Protect compressor from extreme cold if possible
Smith Creek Field Note | Winter Operation: "To prevent winter fish kills, move your diffusers to a shallower shelf (approx. 3–4 feet deep). We recommend using a timer to run the compressor for 1–3 hours a day during freezing temperatures. This is sufficient to maintain an open vent hole in the ice for critical gas exchange without 'super-cooling' the deep water where your fish are over-wintering."
Additional Components You'll Need:
- 3/8" Tubing: Weighted or Quick Sink tubing (100-200 feet typical for 1 acre)
- Extra Diffusers: Additional QS1 diffusers if needed
- Replacement Air Filter: GAF2 air filter for maintenance
- Compressor Shelter: Optional cabinet or shelter for weather protection
Why EasyPro Stratus Rocking Piston Systems:
EasyPro's Stratus GEN 2 rocking piston compressors deliver reliable pond aeration with exceptional deep-water capability. The ability to handle depths up to 50 feet makes these systems ideal for deeper ponds. With proven rocking piston technology and dual voltage options, the Stratus system provides effective aeration for ponds up to 1 acre. For pond owners who need maximum depth capability or have deeper water applications, the Stratus rocking piston system is the right choice.
Get reliable pond aeration with exceptional depth capability. Order your EasyPro Stratus Rocking Piston Aerator System today - choose your model and voltage at checkout!
