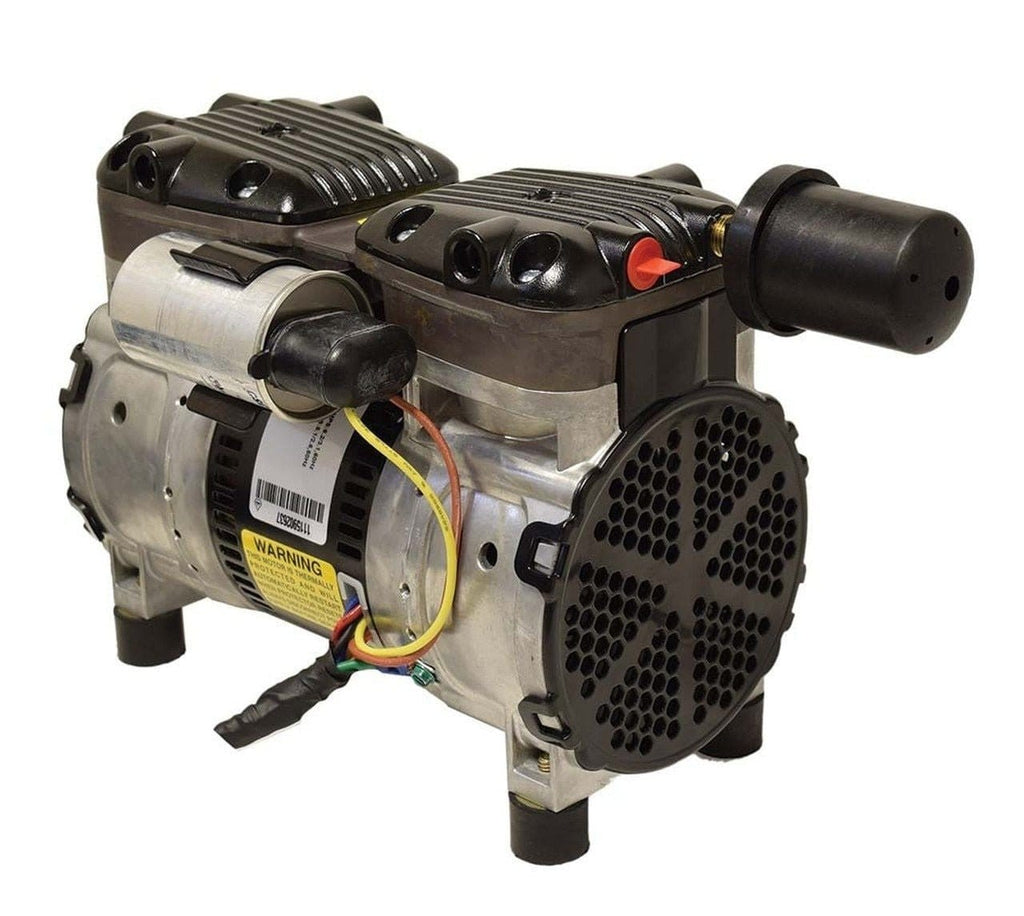

Stratus SRC series "Gen 2" rocking piston compressors are specifically designed for the demanding job of 24-hour operation. They are ideal for pond aeration systems. The oil-less design safely aerates ponds with no electricity in the water. The shore-mounted 1/2 HP Rocking Piston Compressor sends air through tubing to a bottom-mounted diffuser for a safe, effective way to aerate ponds. Compressors are available in 115v or 230v.
Free Shipping!
OVERVIEW:
- Inlet air filter, rubber footpads, and 5' power cord included
- Universal dual voltage motor, oil-less operation with permanently lubricated bearings
- Includes Stratus Smart-Start technology
- Superior quality, flexible cup material for increased reliability, including a hard-coated cylinder for wear resistance and Die-cast aluminum components for overall strength.
- 2-year limited warranty
- Assembled in the USA
Compressor Specifications:
- Power Cord Length: 5'
- Horsepower: 1/2 hp
- Voltage: 115v or 230v
- Amps: 3.6 or 1.8 amps (at 10' operating depth)
- Max PSI: 30
- Maximum Air Flow (CFM): 4.5 CFM
- Warranty: 2 year
|
Part # |
HP |
Amps*/Volts |
Cost per 24 Hours** |
|
SRC50 |
1/2 |
3.6/115 |
$0.86 |
|
SRC502 |
1/2 |
1.8/230 |
$0.86 |
*Amps measured at 10’ operating depth
**Cost figured at .09¢ per kwh, 24/7 operation, 10’ operating depth. Actual electrical data will depend on operating conditions.
|
|
Cfm Airflow at Water Depth of: |
|||||
|
0’ |
10’ |
20’ |
30’ |
40’ |
50’ |
|
|
SRC50 |
4.5 |
4.3 |
4.2 |
4.0 |
3.8 |
3.6 |
|
SRC502 |
4.5 |
4.3 |
4.2 |
4.0 |
3.8 |
3.6 |
