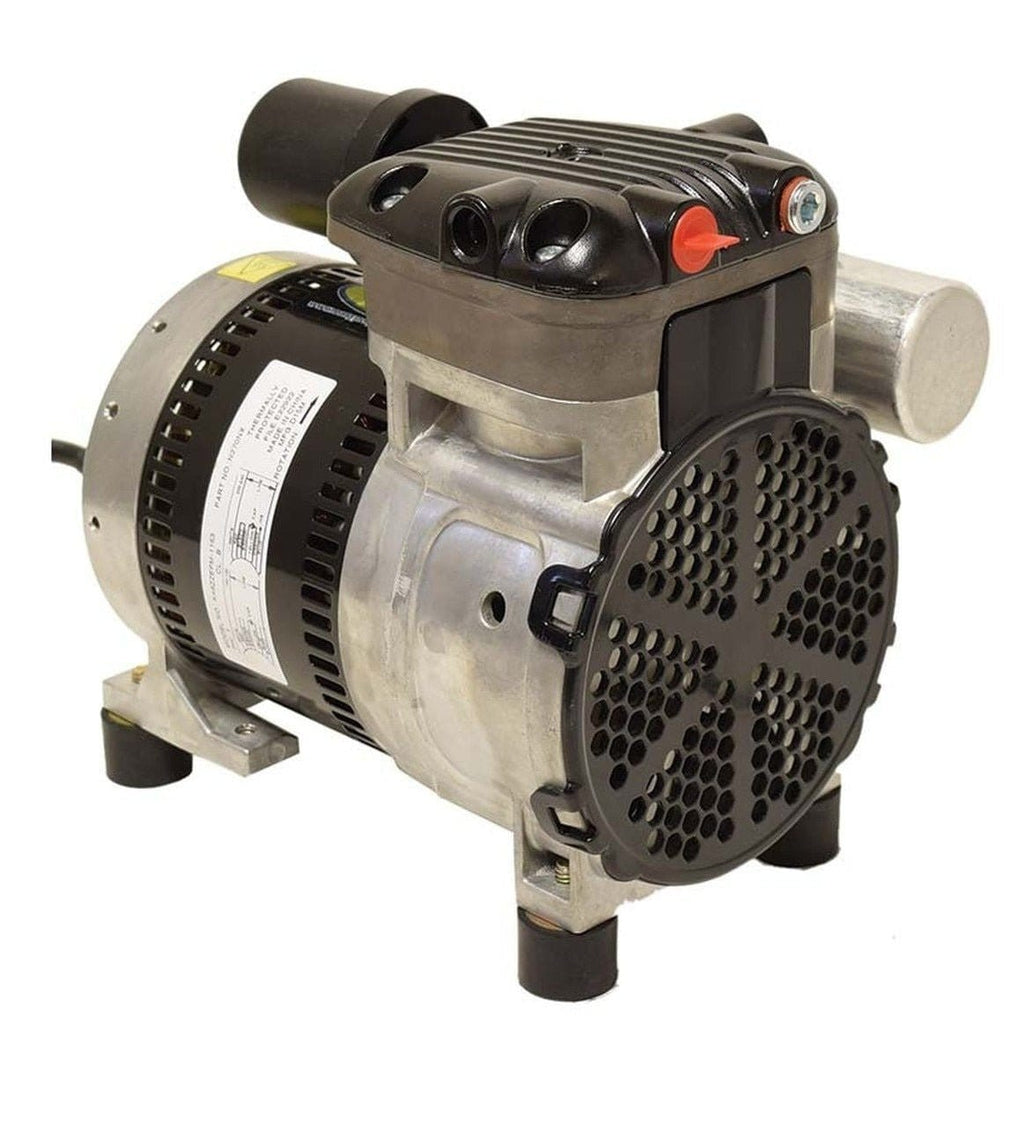

1/4 HP Gast Rocking Piston Compressor
Stratus SRC Series Gen2 Rocking Piston Compressor
FREE SHIPPING!
Stratus SRC series "Gen 2" rocking piston compressors are specifically designed for the demanding job of 24-hour operation. They are ideal for pond aeration systems. The oil-less design safely aerates ponds with no electricity in the water. The shore-mounted compressor sends air through tubing to a bottom-mounted diffuser for a safe, effective way to aerate ponds. 1/4 HP Gast Rocking Piston Compressor is available in 115v or 230v.
- Inlet air filter, rubber foot pads, and 5' power cord included
- Universal dual voltage motor
- Includes Stratus Smart-Start technology
- Oil-less operation
- Superior quality, flexible cup material for increased reliability
- Die-cast aluminum components for overall strength
- Hard coated cylinder for wear resistance
- Permanently lubricated bearings
- 2-year limited warranty
- Assembled in the USA
1/4 HP Gast Rocking Piston Compressor Additional Information:
- Power Cord Length: 5'
- Horsepower: 1/4 hp
- Voltage: 115v
- Amps: 1.7 amps (at 10' operating depth)
- Max PSI: 30
- Maximum Air Flow (CFM): 2.3 CFM
- Warranty: 2 year
*Amps measured at 10' operating depth
**Cost figured at .09¢ per kwh, 24/7 operation, 10' operating depth. Actual electrical data will depend on operating conditions.
|
Part #
|
HP
|
Amps*/Volts
|
Cost per 24 Hours**
|
|
SRC25
|
1/4
|
1.7/115
|
$0.40
|
|
SRC252
|
1/4
|
0.9/230
|
$0.40
|
*Amps measured at 10’ operating depth
**Cost figured at .09¢ per kwh, 24/7 operation, 10’ operating depth. Actual electrical data will depend on operating conditions.
|
|
Cfm Airflow at Water Depth of:
|
|
0’
|
10’
|
20’
|
30’
|
40’
|
50’
|
|
SRC25
|
2.3
|
2.2
|
2.0
|
1.9
|
1.8
|
1.7
|
|
SRC252
|
2.3
|
2.2
|
2.0
|
1.9
|
1.8
|
1.7
|
