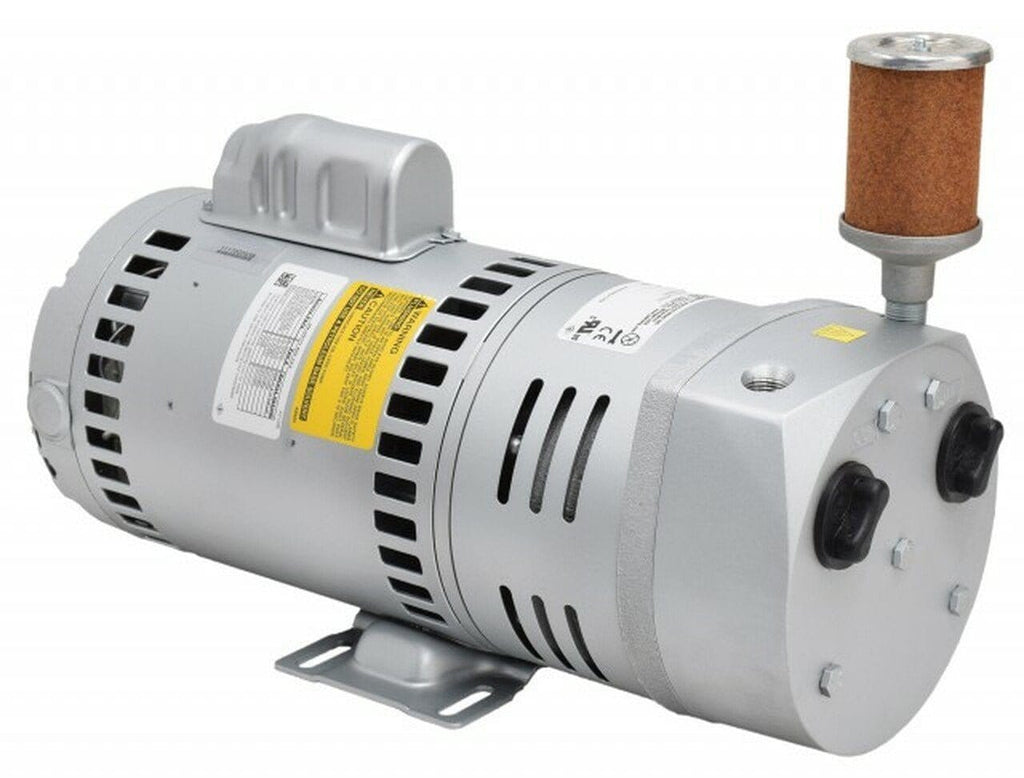

1/4 HP Gast Rotary Vane Compressor
FREE SHIPPING
Long-lasting, continuous-duty compressors offer fewer depth capabilities than the diaphragm or rocking piston compressors but produce considerably more air
- Medium pressure, oil-free compressors are excellent for pond and lake aeration and de-icing
- Carbon vanes self-adjust to maintain maximum efficiency and are easily replaced when worn out

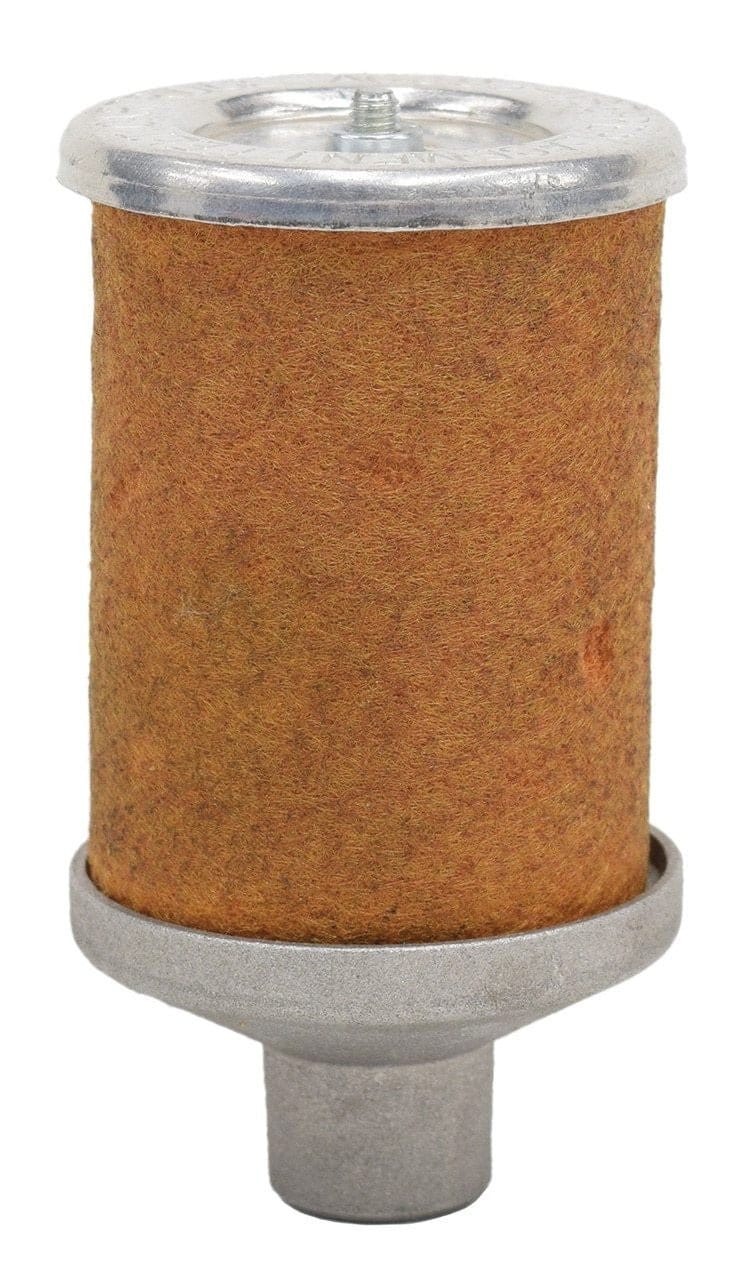

- All models have an 18' maximum operating depth, they come with an air filter and 6' power cord
- Air outlet assemblies are available allowing one pump to supply up to 6 air manifolds
- Available in 115v or 230v.
- One-Year Warranty
|
|

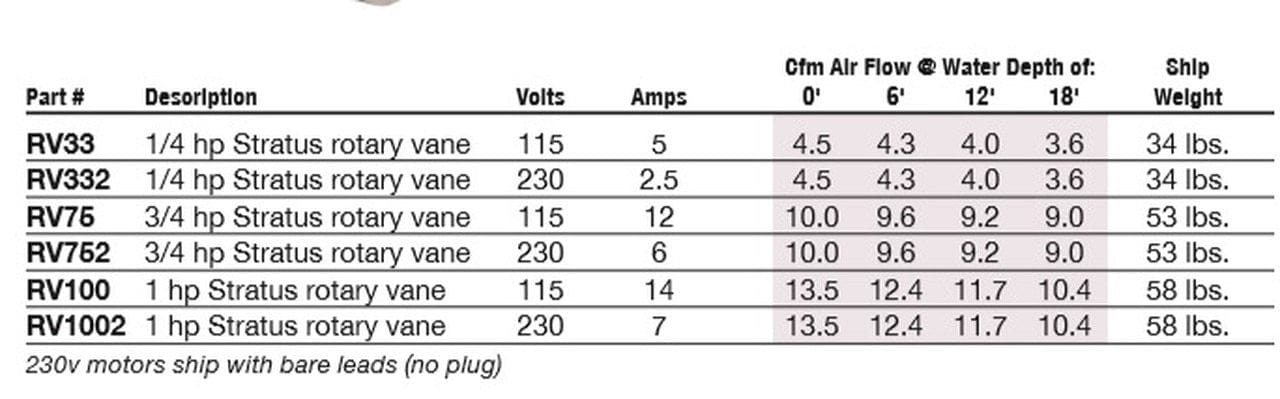

Volts/Amps
|
Cfm Airflow at Water Depth of:
|
|
0’
|
6’
|
12’
|
18’
|
|
RV33
|
115v/5
|
2.3
|
2.2
|
2.0
|
1.9
|
|
RV332
|
230v/2.5
|
2.3
|
2.2
|
2.0
|
1.9
|
|
RV75
|
115v/12
|
4.5
|
4.3
|
4.2
|
4.0
|
|
RV752
|
230v/6
|
4.5
|
4.3
|
4.2
|
4.0
|
|
RV100
|
115v/14
|
6.5
|
6.0
|
5.5
|
5.2
|
|
RV1002
|
230v/7
|
6.5
|
6.0
|
5.5
|
5.2
|
Additional Information:
- Horsepower: 1/4 HP
- Voltage: 115v or 230v
- Amps 5.0 amps @115v and 2.5 @230v
- CFM @ 0 ft: 4.5
- CFM @ 6 ft: 4.3
- CFM @ 12 ft: 4.0
- CFM @ 18 ft: 3.6
- Max PSI 10 psi
- Maximum Depth 18 ft.
- Power Cord Length: 6'
