1 HP Gast Rotary Vane Compressor
The 1 HP Gast Rotary Vane Compressor-RV100 is a long-lasting, continuous-duty compressor that offers less depth capabilities than the diaphragm or rocking piston compressors but the 1 HP Gast Rotary Vane Compressor produces considerably more air volume.
- Medium pressure, oil-free compressors are excellent for pond and lake aeration and de-icing
- Carbon vanes self adjust to maintain maximum efficiency and are easily replaced when worn out
- All models have an 18' maximum operating depth, they come with an air filter and 6' power cord
- Air outlet assemblies are available allowing one pump to supply up to 6 air manifolds
- Available in 115v or 230v.
|
|

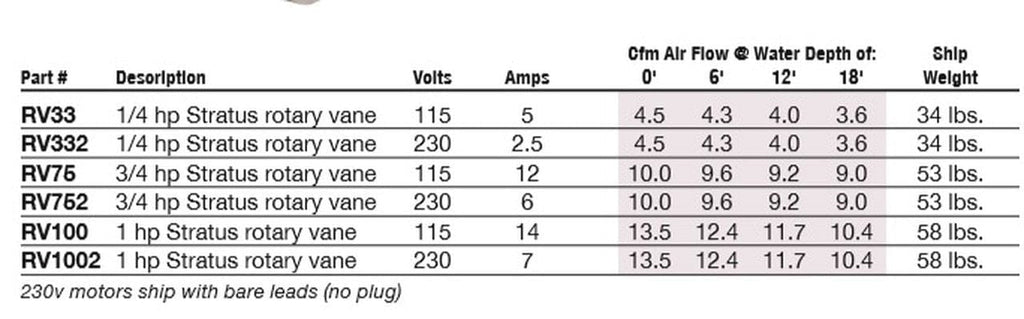

Volts/Amps |
Cfm Airflow at Water Depth of: |
|||
|
0’ |
6’ |
12’ |
18’ |
||
|
RV33 |
115v/5 |
2.3 |
2.2 |
2.0 |
1.9 |
|
RV332 |
230v/2.5 |
2.3 |
2.2 |
2.0 |
1.9 |
|
RV75 |
115v/12 |
4.5 |
4.3 |
4.2 |
4.0 |
|
RV752 |
230v/6 |
4.5 |
4.3 |
4.2 |
4.0 |
|
RV100 |
115v/14 |
6.5 |
6.0 |
5.5 |
5.2 |
|
RV1002 |
230v/7 |
6.5 |
6.0 |
5.5 |
5.2 |
Additional Information:
- Horsepower: 1 HP
- Voltage: 115v or 230v
- Amps: 12 @ 115v and 6 @230v
- CFM @ 0 ft: 13.5
- CFM @ 6 ft: 12.4
- CFM @ 12 ft: 11.7
- CFM @ 18 ft: 10.4
- Max PSI: 10 psi
- Maximum Depth: 18 ft.
- Power Cord Length: 6'
Recommended Accessories:
- Air Diffusers
- Rock Cover
- Cabinet
- Weighted Tubing
- Manifold/ Valves
