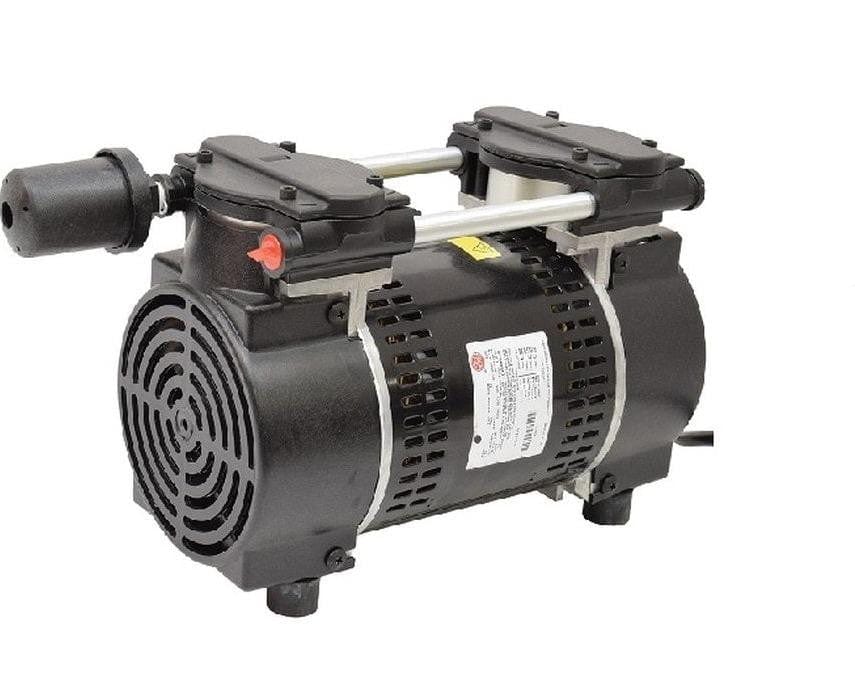

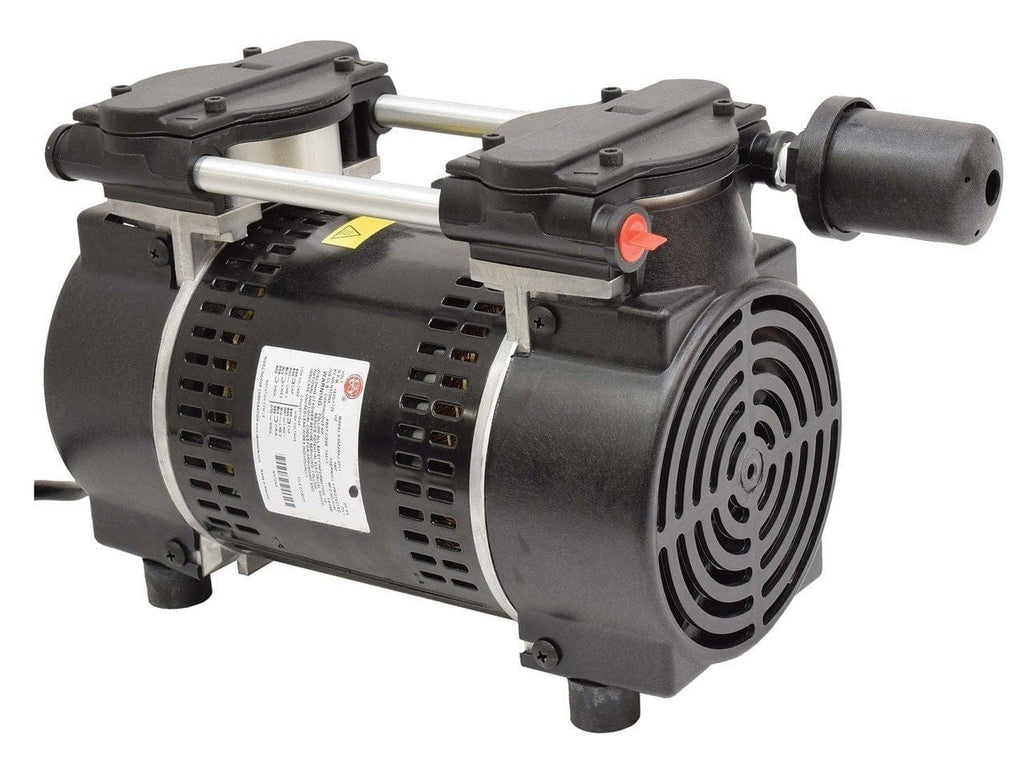

3/4 HP Gast Rocking Piston Compressor
FREE SHIPPING!
Stratus SRC series "Gen 2" rocking piston compressors are specifically designed for the demanding job of 24-hour operation. They are ideal for pond aeration systems. The oil-less design safely aerates ponds with no electricity in the water. The shore-mounted compressor sends air through tubing to a bottom-mounted diffuser for a safe, effective way to aerate ponds. 3/4 HP Gast Rocking Piston Compressor is available in 115v or 230v.
- Inlet air filter, rubber foot pads, and 5' power cord included
- Universal dual voltage motor
- Includes Stratus Smart-Start technology
- Oil-less operation
- Superior quality, flexible cup material for increased reliability
- Die-cast aluminum components for overall strength
- Hard coated cylinder for wear resistance
- Permanently lubricated bearings
- Assembled in the USA
Additional Information:
- Power Cord Length: 5'
- Horsepower: 3/4 hp
- Voltage: 115v or 230v
- Amps: 4.5 amps at 115v (at 10' operating depth)
- Max PSI: 30
- Maximum Air Flow (CFM): 6.5 CFM
- Warranty: 2 year
|
Part #
|
HP
|
Amps*/Volts
|
Cost per 24 Hours**
|
|
SRC75
|
3/4
|
4.5/115
|
$1.10
|
|
SRC752
|
3/4
|
2.3/230
|
$1.10
|
*Amps measured at 10’ operating depth
**Cost figured at .09¢ per kwh, 24/7 operation, 10’ operating depth. Actual electrical data will depend on operating conditions.
|
|
Cfm Airflow at Water Depth of:
|
|
0’
|
10’
|
20’
|
30’
|
40’
|
50’
|
|
SRC75
|
6.5
|
6.0
|
5.5
|
5.2
|
5.0
|
4.7
|
|
SRC752
|
6.5
|
6.0
|
5.5
|
5.2
|
5.0
|
4.7
|
