EasyPro Sentinel Deluxe Rotary Vane Aerator System 1/4 HP - Complete Pond Aeration for Up to 2 Acres

EasyPro Sentinel Deluxe Rotary Vane Aerator System 1/4 HP - Professional Pond Aeration Up to 2 Acres

The EasyPro Sentinel Deluxe Rotary Vane Aerator System delivers professional-grade pond aeration in a convenient, pre-installed package. Designed for ponds up to 2 acres and depths to 18 feet, this complete system includes everything you need for reliable, energy-efficient aeration. The deluxe locking cabinet with cooling fan protects your investment while the powerful 1/4 HP rotary vane compressor delivers 4.5 CFM of airflow for superior oxygenation.

Choose Your Complete System Configuration:

Select your model at checkout based on what components you need.

Why Choose the EasyPro Sentinel Deluxe System:

• Pre-Installed & Ready: Compressor, electrical components, and valves pre-installed in cabinet
• Deluxe Locking Cabinet (SC22): Weather-resistant protection with built-in cooling fan
• Powerful RV33 Compressor: 1/4 HP rotary vane design for reliable, quiet operation
• Two-Valve Manifold: Independent control of two diffuser zones
• Pressure Monitoring: Built-in pressure gauge and relief valve
• Energy Efficient: Only $1.31 per day operating cost (at $0.09/kWh)
• Professional Performance: Aerates up to 2 acres and 18 feet deep
• Long Warranty: 5-year warranty on cabinet and diffusers, 1-year on compressor
• Quick Setup: Just connect diffusers and tubing - system is pre-wired

Complete System Specifications:

RV33 Rotary Vane Compressor:

• Motor: 1/4 HP
• Voltage: 115V
• Amperage: 5.0 amps
• Airflow: 4.5 CFM maximum
• Maximum Depth: 18 feet
• Coverage: Up to 2 acres
• Operating Cost: $1.31 per 24 hours (at $0.09/kWh)
• Weight: 109 lbs (complete system)
• Warranty: 1 year on compressor

SC22 Deluxe Locking Cabinet:

• Dimensions: 16.5" W x 22" D x 19" H
• Type: Ground-mounted weather-resistant cabinet
• Features: Locking door, built-in cooling fan, ventilation
• Includes: Electrical box, outlet, pre-wired connections
• Protection: Keeps compressor safe from weather and tampering
• Warranty: 5 years

Two-Valve Manifold Assembly:

• Valves: Two independent control valves
• Pressure Gauge: Monitor system pressure
• Pressure Relief Valve: Automatic overpressure protection
• Connections: 1/2" valved outlets
• Heat-Reducing Hose: Protects tubing from compressor heat

QS2 Quick Sink Diffusers (PA50D & PA50AD models):

• Quantity: (2) diffusers included
• Type: Quick Sink weighted diffusers
• Design: Self-weighted for easy installation
• Bubble Pattern: Fine bubble diffusion for maximum oxygen transfer
• Warranty: 5 years

Quick Sink Tubing (PA50D & PA50DLD models):

• Length: 200 feet of 1/2" tubing
• Type: Quick Sink weighted tubing
• Material: UV-resistant, self-sinking
• Connections: 1/2" diameter fits manifold outlets

What's Included with Each Model:

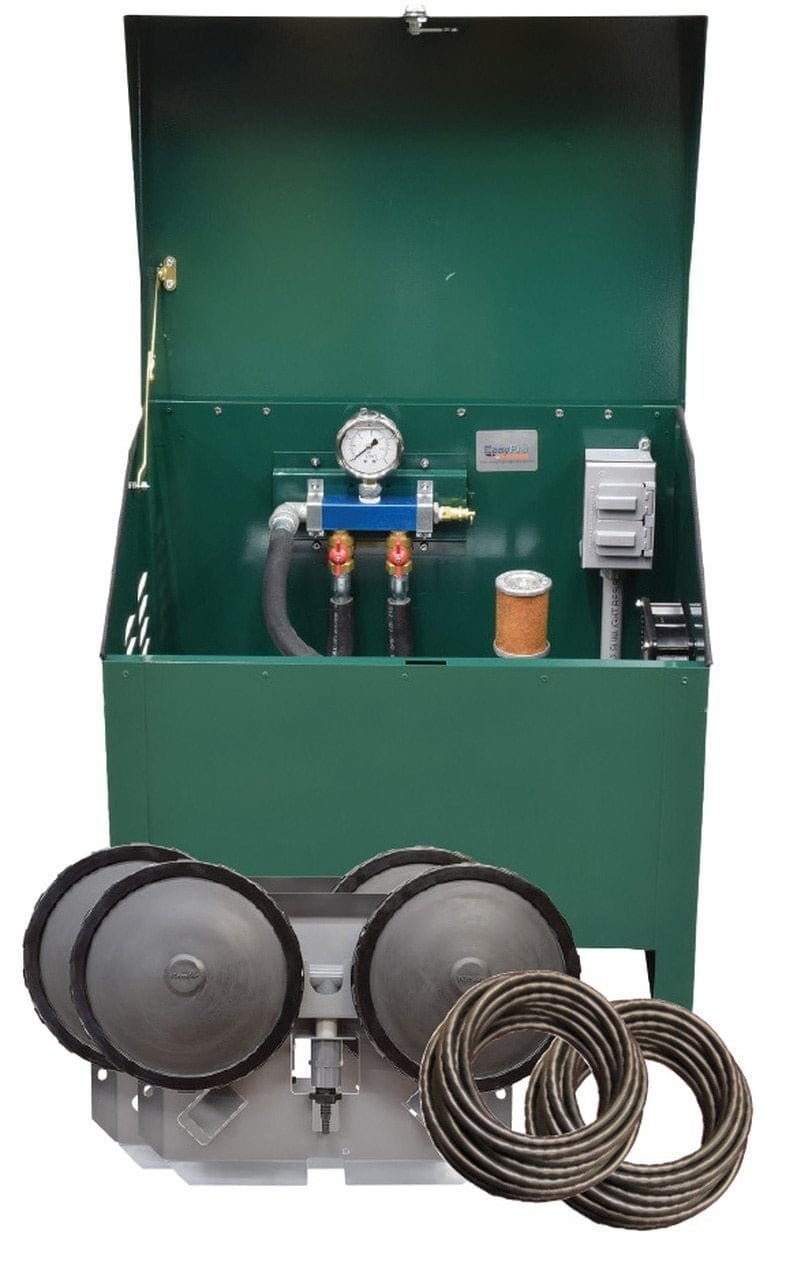

PA50D - Complete Turnkey System:

• ✓ RV33 1/4 HP rotary vane compressor (pre-installed)
• ✓ SC22 deluxe locking cabinet with cooling fan
• ✓ Two-valve manifold with pressure gauge and relief valve
• ✓ Electrical box and outlet (pre-wired)
• ✓ (2) QS2 Quick Sink diffusers
• ✓ 200 feet of 1/2" Quick Sink weighted tubing
• ✓ Heat-reducing hose
• ✓ All necessary hardware

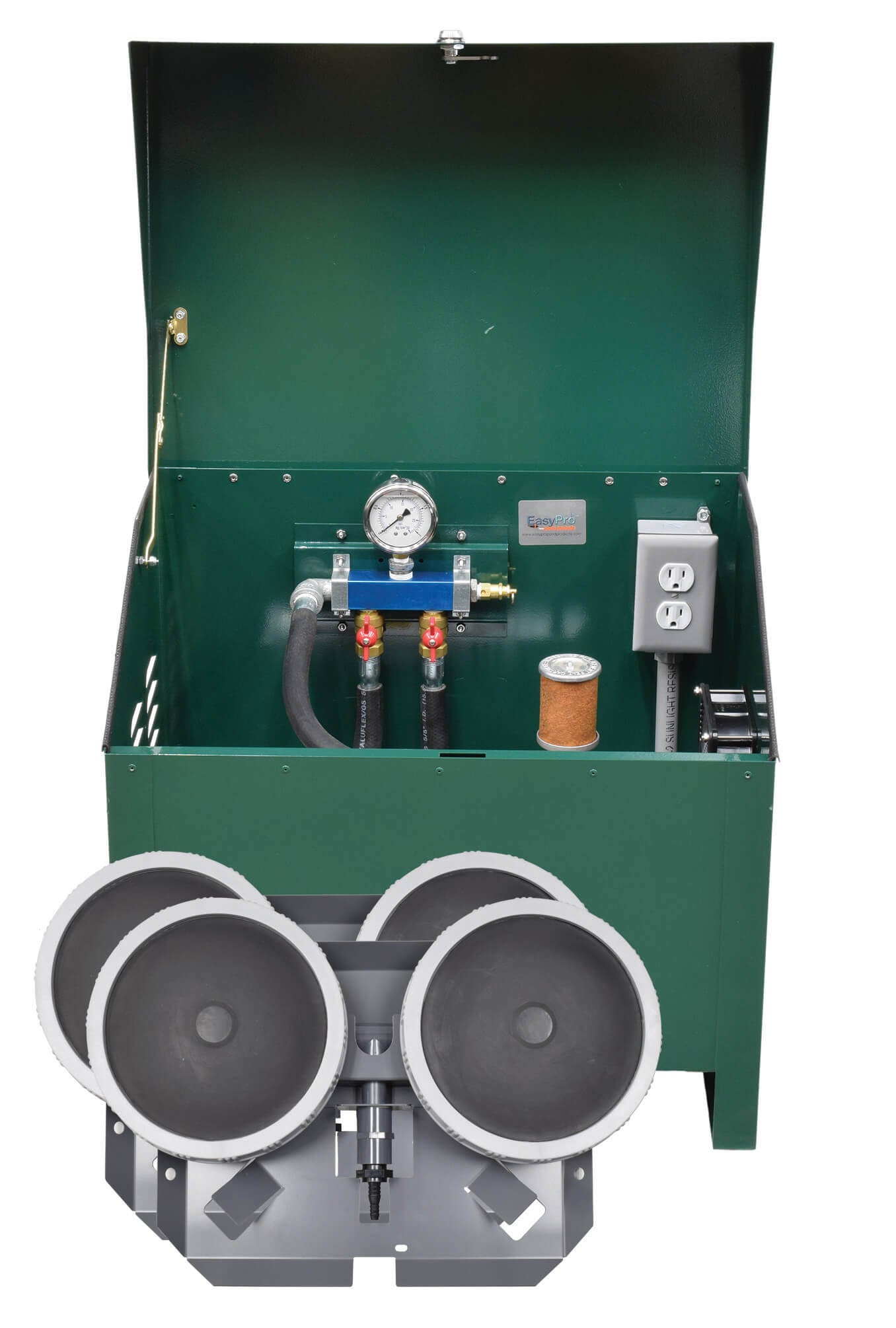

PA50AD - System Without Tubing:

• ✓ RV33 1/4 HP rotary vane compressor (pre-installed)
• ✓ SC22 deluxe locking cabinet with cooling fan
• ✓ Two-valve manifold with pressure gauge and relief valve
• ✓ Electrical box and outlet (pre-wired)
• ✓ (2) QS2 Quick Sink diffusers
• ✓ Heat-reducing hose
• ✓ All necessary hardware
• ❌ Tubing NOT included - order separately

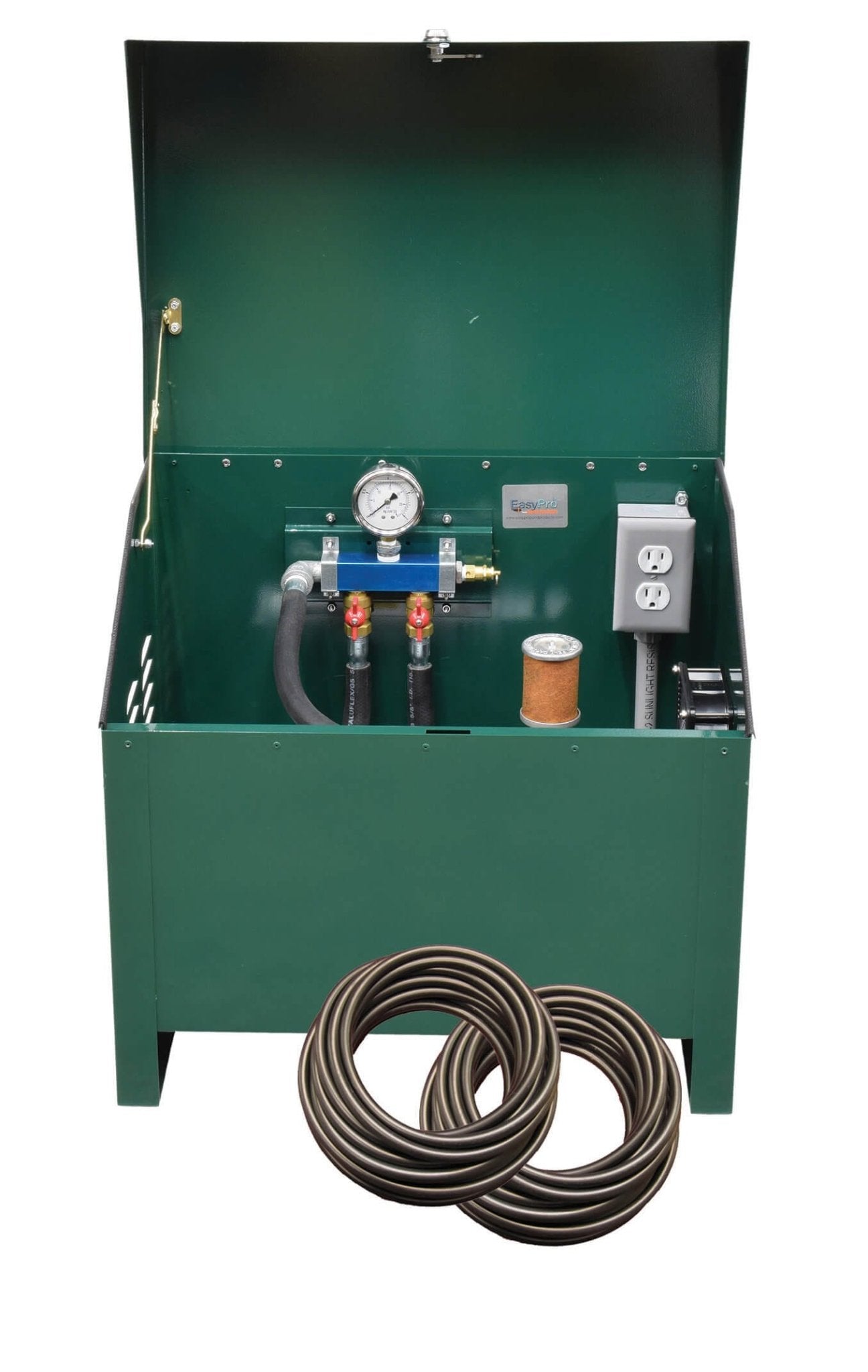

PA50DLD - System Without Diffusers:

• ✓ RV33 1/4 HP rotary vane compressor (pre-installed)
• ✓ SC22 deluxe locking cabinet with cooling fan
• ✓ Two-valve manifold with pressure gauge and relief valve
• ✓ Electrical box and outlet (pre-wired)
• ✓ 200 feet of 1/2" Quick Sink weighted tubing
• ✓ Heat-reducing hose
• ✓ All necessary hardware
• ❌ Diffusers NOT included - order separately

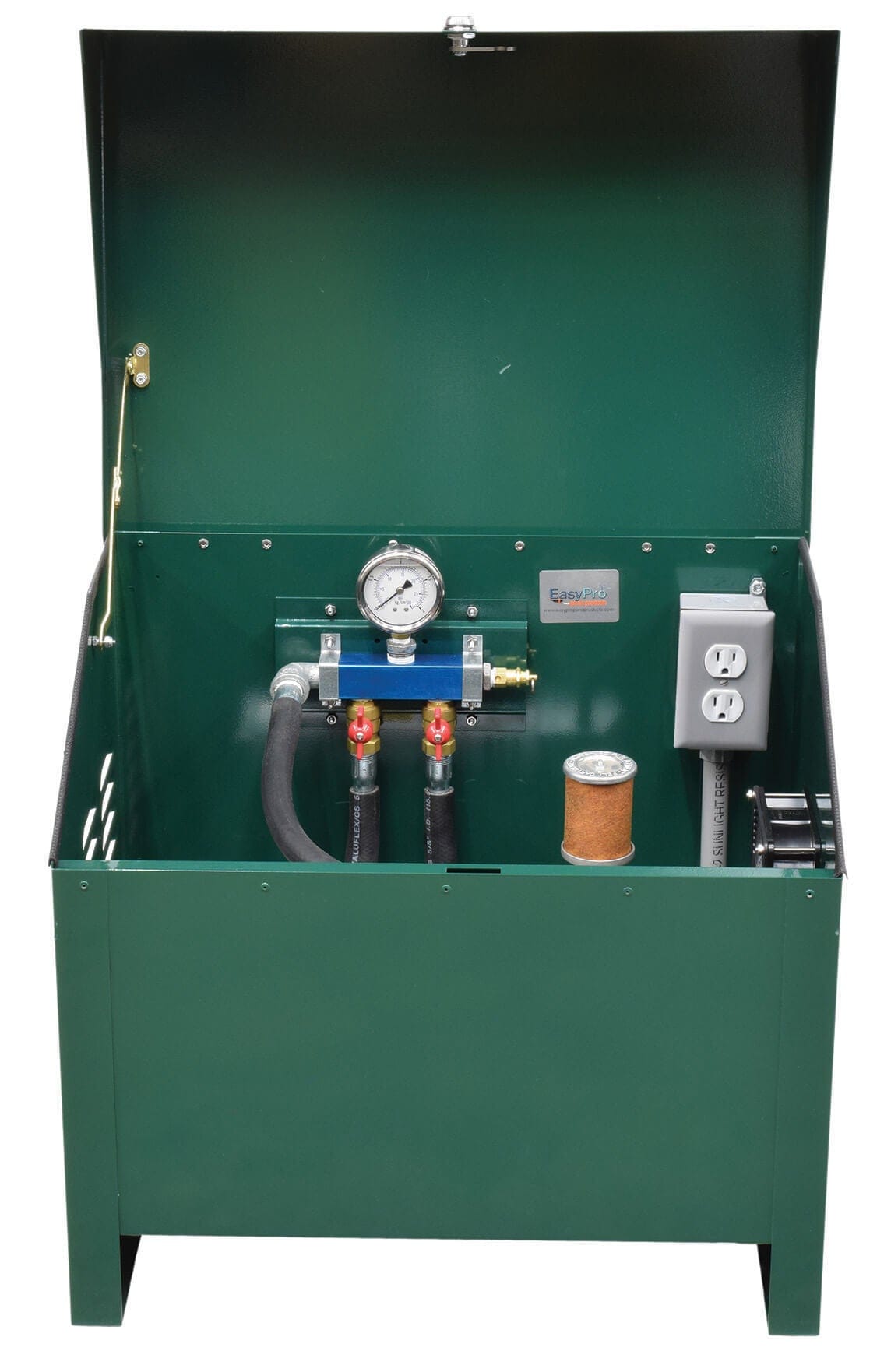

PA50ADLD - Compressor & Cabinet Only:

• ✓ RV33 1/4 HP rotary vane compressor (pre-installed)
• ✓ SC22 deluxe locking cabinet with cooling fan
• ✓ Two-valve manifold with pressure gauge and relief valve
• ✓ Electrical box and outlet (pre-wired)
• ✓ Heat-reducing hose
• ✓ All necessary hardware
• ❌ Diffusers NOT included - order separately
• ❌ Tubing NOT included - order separately

Installation Guide:

What You'll Need:

• Level ground location near pond
• 115V outdoor electrical outlet (GFCI recommended)
• Basic hand tools
• Helper for moving cabinet (109 lbs)

Installation Steps:

1. Choose Location: Select level ground within 200 feet of pond (or tubing length)
2. Position Cabinet: Place SC22 cabinet on level surface, ensure cooling fan has clearance
3. Connect Power: Plug into 115V GFCI outlet - system is pre-wired and ready
4. Attach Tubing: Connect 1/2" tubing to valved manifold outlets
5. Run Tubing to Pond: Lay tubing from cabinet to pond edge
6. Attach Diffusers: Connect QS2 diffusers to tubing ends
7. Deploy Diffusers: Place diffusers in desired pond locations (Quick Sink design sinks automatically)
8. Open Valves: Turn on manifold valves to start airflow
9. Check Pressure: Monitor pressure gauge - should be within normal range
10. Verify Operation: Look for bubbles at diffuser locations

Pro Tip: Position diffusers in deepest areas of pond for maximum circulation. Use both valves to create circulation patterns.

Rotary Vane vs. Piston Compressors:

Pond Aeration Benefits:

• ✓ Increases Dissolved Oxygen: Essential for fish health and survival
• ✓ Reduces Algae Growth: Circulation prevents stagnant conditions
• ✓ Eliminates Stratification: Mixes water layers for uniform temperature
• ✓ Reduces Muck Buildup: Aerobic bacteria digest organic sediment
• ✓ Improves Water Clarity: Better circulation and biological activity
• ✓ Prevents Fish Kills: Maintains oxygen levels year-round
• ✓ Reduces Odors: Aerobic conditions eliminate foul smells
• ✓ Winter Ice Prevention: Keeps area open for gas exchange
• ✓ Supports Beneficial Bacteria: Aerobic bacteria outcompete harmful anaerobic types

Perfect For:

• ✓ Residential Ponds: Up to 2 acres, decorative or fish ponds
• ✓ Farm Ponds: Livestock watering, irrigation ponds
• ✓ Fish Ponds: Supports healthy fish populations
• ✓ Retention Ponds: Stormwater management, HOA ponds
• ✓ Golf Course Ponds: Aesthetic and water quality maintenance
• ✓ Estate Ponds: Property value enhancement
• ✓ Aquaculture: Small-scale fish farming operations

Frequently Asked Questions

Which model should I choose - PA50D, PA50AD, PA50DLD, or PA50ADLD?

Choose PA50D if you need a complete turnkey system with everything included - this is the most popular choice. Choose PA50AD if you already have tubing or want to use a custom length. Choose PA50DLD if you have diffusers or want to use a different diffuser type. Choose PA50ADLD if you already have both diffusers and tubing and just need the compressor and cabinet. All models include the same RV33 compressor and SC22 cabinet.

How large of a pond will this system aerate?

The 1/4 HP RV33 compressor aerates ponds up to 2 acres in size and up to 18 feet deep. Actual coverage depends on pond shape, depth, and desired oxygen levels. Deeper ponds or irregular shapes may require additional diffusers or a larger system. For ponds over 2 acres, consider a larger HP system.

What is Quick Sink tubing and do I need it?

Quick Sink tubing is weighted, self-sinking airline tubing that stays on the pond bottom without additional weights. It's UV-resistant and designed for permanent installations. If you choose PA50AD or PA50ADLD (models without tubing), you can use standard weighted tubing or Quick Sink tubing ordered separately. The 200 feet included with PA50D and PA50DLD is sufficient for most 2-acre ponds.

How much does it cost to operate this system?

Operating cost is approximately $1.31 per 24 hours based on $0.09 per kWh electricity rate. That's about $40 per month or $480 per year. Actual costs vary based on your local electricity rates. The rotary vane design is more energy-efficient than piston compressors, saving money over time.

Can I run this system year-round?

Yes! The system is designed for continuous year-round operation. Winter aeration is especially important to prevent fish kills and maintain a gas exchange hole in ice. The deluxe SC22 cabinet protects the compressor from weather extremes. In very cold climates, the cabinet's location should allow some heat retention.

How quiet is the rotary vane compressor?

Rotary vane compressors are significantly quieter than piston compressors. The RV33 produces a smooth, low hum rather than the loud pulsing sound of piston units. The locking cabinet further reduces noise. Most installations are unobtrusive even in residential settings.

What maintenance does this system require?

Rotary vane compressors require minimal maintenance compared to piston types. Check the air filter periodically and clean or replace as needed. Inspect tubing connections annually. Clean diffusers if airflow decreases (usually once per year). The cooling fan in the cabinet should be checked to ensure it's operating. Overall, this is a low-maintenance system.

Can I add more diffusers to this system?

Yes! The two-valve manifold allows you to run two separate diffuser zones. You can add additional diffusers to each zone by using a splitter or manifold. However, adding too many diffusers can reduce airflow to each one. For ponds requiring more than 2-4 diffusers, consider a larger HP system.

What's the difference between the 1-year and 5-year warranties?

The RV33 compressor has a 1-year manufacturer warranty, which is standard for pond aerator compressors. The SC22 cabinet and QS2 diffusers have a 5-year warranty, reflecting their durable construction. EasyPro stands behind their products with excellent customer service and replacement part availability.

Do I need a GFCI outlet?

Yes, a GFCI (Ground Fault Circuit Interrupter) outlet is strongly recommended for any outdoor electrical equipment near water. This provides critical safety protection against electrical shock. If your outdoor outlet isn't GFCI-protected, have a qualified electrician install one before connecting the system.

Seasonal Operation Tips:

Spring (March-May):

• Increase aeration as water warms and fish become active
• Clean diffusers after winter if needed
• Check all connections and tubing for winter damage
• Monitor oxygen levels as biological activity increases

Summer (June-August):

• Run system 24/7 during hot weather
• Warm water holds less oxygen - aeration is critical
• Watch for algae blooms and increase aeration if needed
• Ensure cabinet cooling fan is operating properly

Fall (September-November):

• Continue full-time operation as leaves fall
• Aeration helps digest falling organic matter
• Prepare for winter by checking all components
• Clean diffusers before winter

Winter (December-February):

• Keep system running to maintain gas exchange hole in ice
• Prevents toxic gas buildup under ice
• Critical for fish survival in frozen ponds
• Cabinet protects compressor from freezing temperatures

Additional Components Available:

• Extra Diffusers: Add more QS2 diffusers for larger coverage
• Additional Tubing: 1/2" weighted or Quick Sink tubing in various lengths
• Replacement Parts: Air filters, valves, pressure gauges available
• Manifold Splitters: Run multiple diffusers from one valve

Why EasyPro is the Industry Leader:

EasyPro has been manufacturing professional pond equipment for over 30 years. Their Sentinel Deluxe systems represent the pinnacle of pre-assembled, ready-to-install aeration technology. By pre-installing the compressor, electrical components, and manifold in a weather-resistant cabinet, EasyPro eliminates the complexity and potential errors of field assembly. The result is a reliable, professional-grade system that's as easy to install as it is to operate.

Transform your pond with professional aeration. Order your EasyPro Sentinel Deluxe Rotary Vane Aerator System today - choose your model configuration at checkout!

FREE SHIPPING on all EasyPro Sentinel Deluxe Systems!
