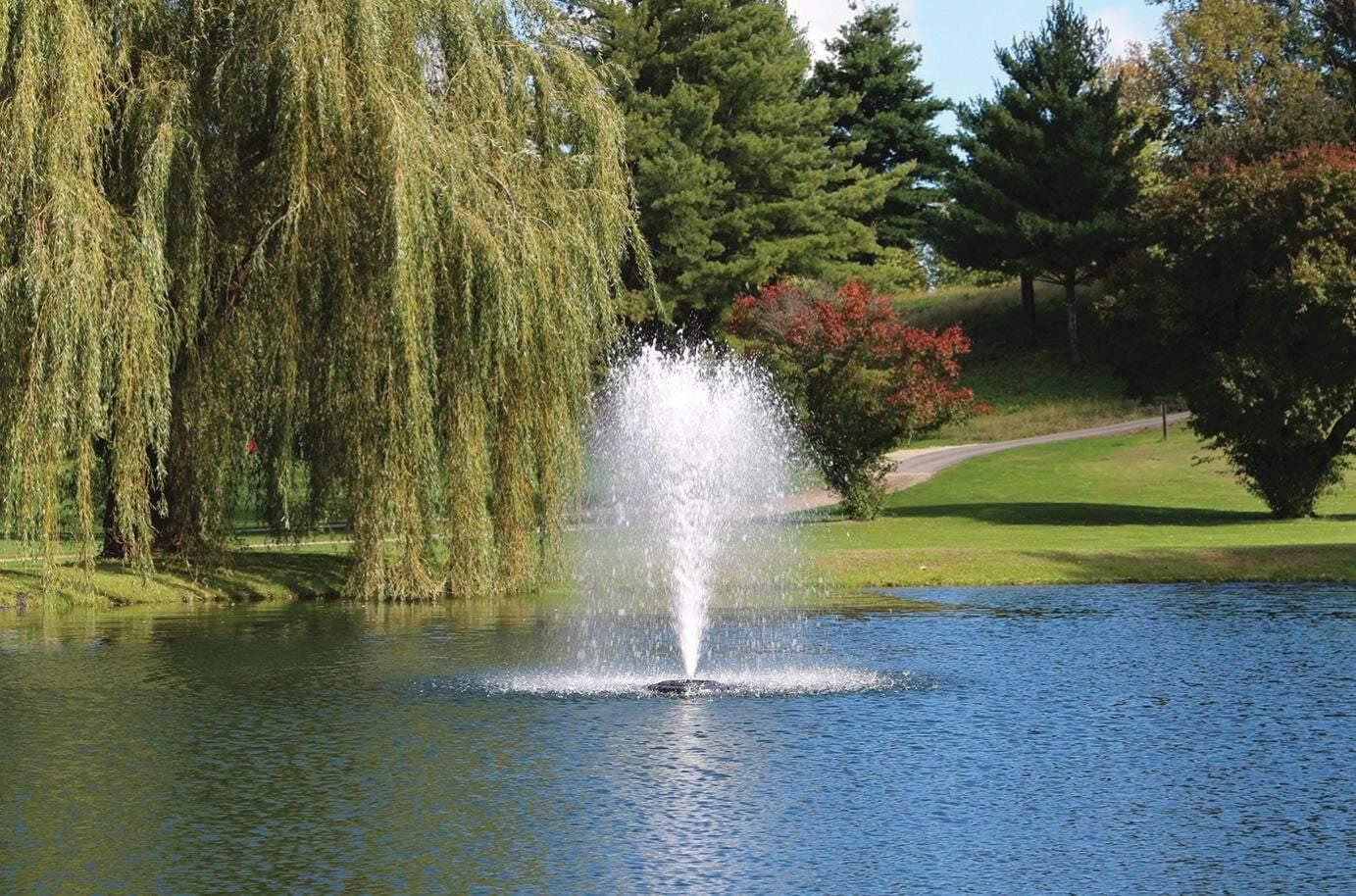

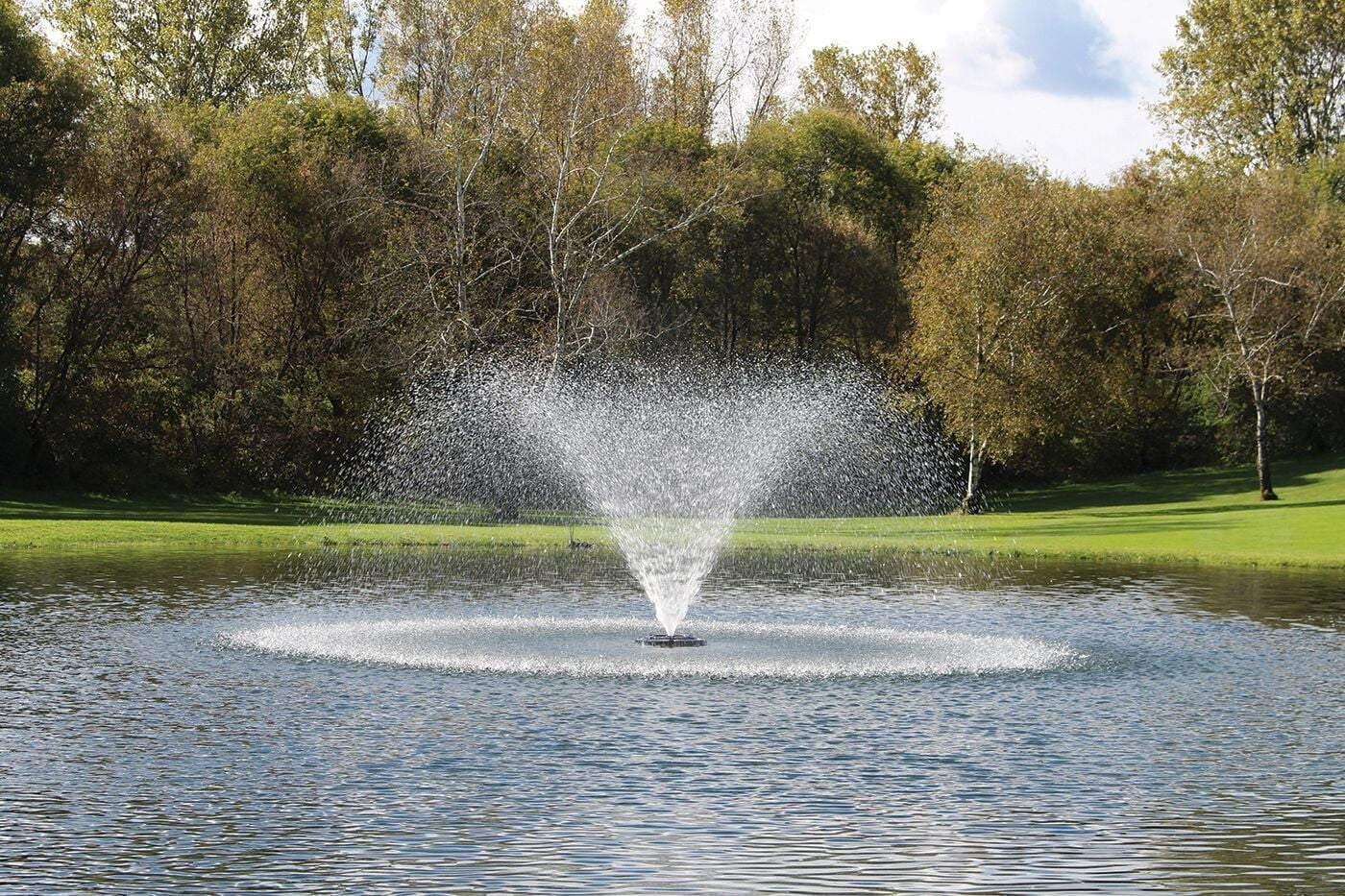

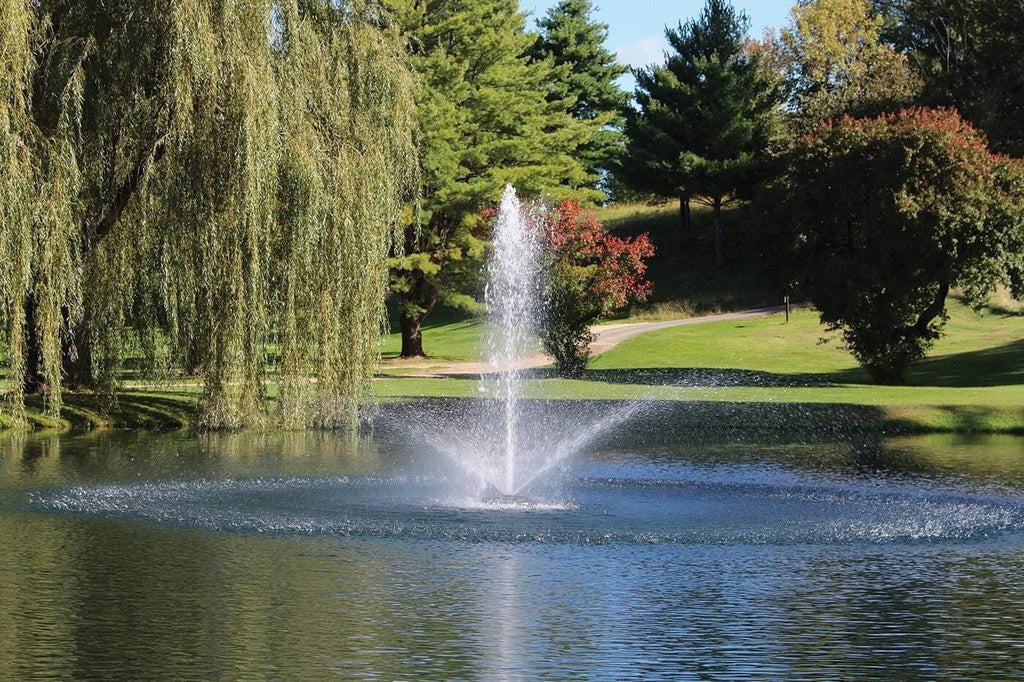

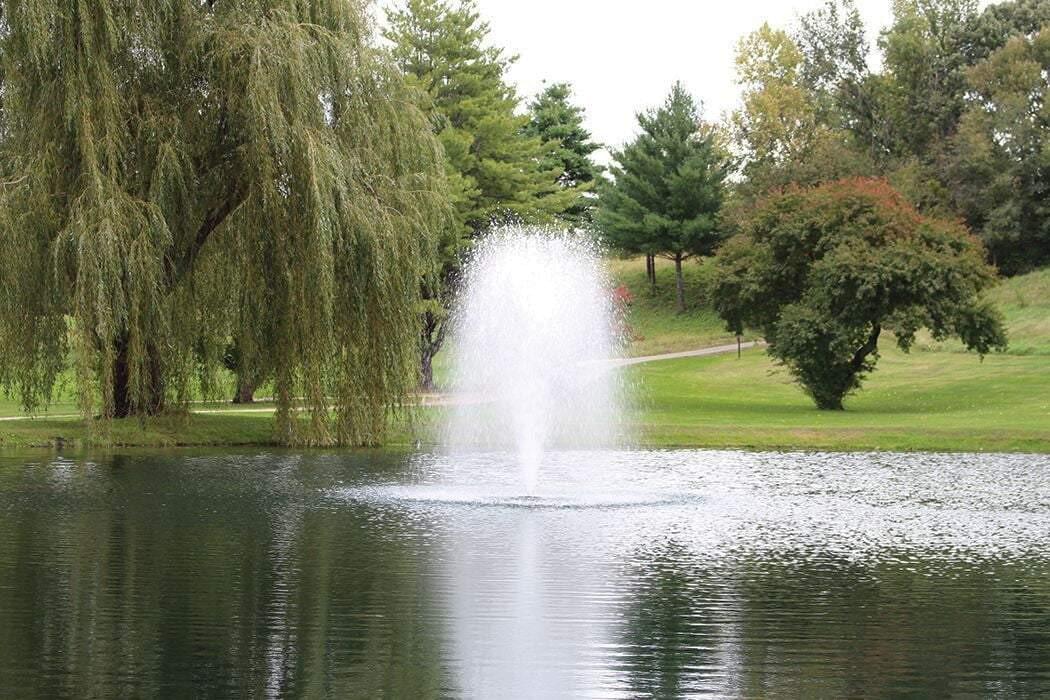

Kasco J Series Fountains offer dramatic, aesthetically pleasing displays at the best value on the market. Designed with both beauty and function in mind, each package includes several display nozzles - at no extra charge - allowing you to choose from attention demanding geysers to elegant 2-tier displays. 3/4 and 1HP units include 5 nozzle patterns, 2 and 3HP units include 6 nozzle patterns, 5HP units include 7 patterns, 7-1/2HP units include 3 patterns.
Available as 3/4, 1, 2, 3, 5 and 7-1/2HP units
3/4HP and 1HP units redesigned for increased pattern heights and widths without increasing amp draw
Package includes unit, float, mooring ropes, power cord, display nozzles and control panel with human-rated GFCI protection
Cord lengths up to 200 ft. on 120V units, up to 500 ft. on 208-240V units
Complete packages are ETL approved to UL and CSA standards
2 year warranty on 3/4HP and 1HP units, 3 year warranty on 2HP and larger units
Kasco J Series Display Fountains includes:
Motor assembly, float, bottom screen, mooring ropes, power cord and control panel (includes a weatherproof enclosure, GFI protection, a timer for fountain and a photo eye for lights)
Lighting Option:
Multiple lighting options for J Series Display Fountains.
60Hz Models
Size (HP)
Cord Length (ft.)
Voltage
Phase
Min. Depth (in.)
Patterns Included
3400JF
3/4
50, 100, 150, 200
120
1
17.5
5
3400HJF
3/4
50, 100, 150, 200, 250, 300, 400, 500
208-240
1
17.5
5
4400JF
1
50, 100, 150, 200
120
1
19
5
4400HJF
1
50, 100, 150, 200, 250, 300, 400, 500
208-240
1
19
5
8400JF
2
50, 100, 150, 200, 250, 300, 400, 500
208-240
1
20
6
2.3JF
2
50, 100, 150, 200, 250, 300, 400, 500
208-240
3
20
6
2.3HJF
2
50, 100, 150, 200, 250, 300, 400, 500
460-480
3
20
6
3.1JF
3
50, 100, 150, 200, 250, 300, 400, 500
208-240
1
24
6
3.3JF
3
50, 100, 150, 200, 250, 300, 400, 500
208-240
3
24
6
3.3HJF
3
50, 100, 150, 200, 250, 300, 400, 500
460-480
3
24
6
5.1JF
5
100, 150, 200, 250, 300, 400, 500
208-240
1
26
7
5.3JF
5
100, 150, 200, 250, 300, 400, 500
208-240
3
26
7
5.3HJF
5
100, 150, 200, 250, 300, 400, 500
460-480
3
26
7
7.3JF
7.5
100, 150, 200, 250, 300, 400, 500
208-240
3
28
3
7.3HJF
7.5
100, 150, 200, 250, 300, 400, 500
460-480
3
28
3
Two year warranty on 1/2, 3/4 and 1 hp fountains
Three year warranty on 2, 3 and 5 hp fountains
2 hp, 3 hp and 5 hp J Series fountains available with three phase motors
