Stratus KLC Linear Aeration Kits
Give your pond some Koi Loving Care (KLC) with Stratus KLC Linear Aeration Kits!
KLC Koi Pond Aeration Kit Give your pond some Koi Loving Care! Ensure adequate oxygen and circulation during the hot summer months. De-icing capability during freezing months Dual linear diaphragm compressor provides maximum air output Quiet and energy efficient Safe for fish, pets and family with no electricity in the water.
- Ensure adequate oxygen and circulation during hot summer months
- De-icing capability during freezing months
- Dual linear diaphragm compressor provides maximum air output
- Quiet and energy efficient
- Safe for fish, pets and family with no electricity in the water
- All kits include compressor with 6' power cord, rubber membrane diffuser(s), connectors and 3/8" Quick Sink tubing
Stratus KLC Linear Aeration Kits includes:
- KLC compressor
- rubber membrane diffuser
- 3/8" Quick Sink tubing
- Connectors and fittings
Additional Information about Stratus KLC Linear Aeration Kits :
- Power Cord Length: 6'
- Warranty: 3 Year
LA Aeration Kit Instructions
-
KLC Compressor Spec Sheet
Stratus KLC Linear Diaphragm Compressor Manual
KIT PART # | Maximum Pond Size | Tubing | Maximum CFM (cubic feet per minute) | Maximum Recommended Depth | Recommended Repair Kit |
LA1 | 1,000-7,500 Gallons | 25' Quick Sink | 1.3 cfm | 6 Feet | KLC25DK |
LA2 | 2,000-15,000 Gallons | 50' Quick Sink | 2.1 cfm | 6 Feet | KLC40DK |
LA3 | 3,000-22,500 Gallons | 75' Quick Sink | 3.1 cfm | 7 Feet | KLC68DK |

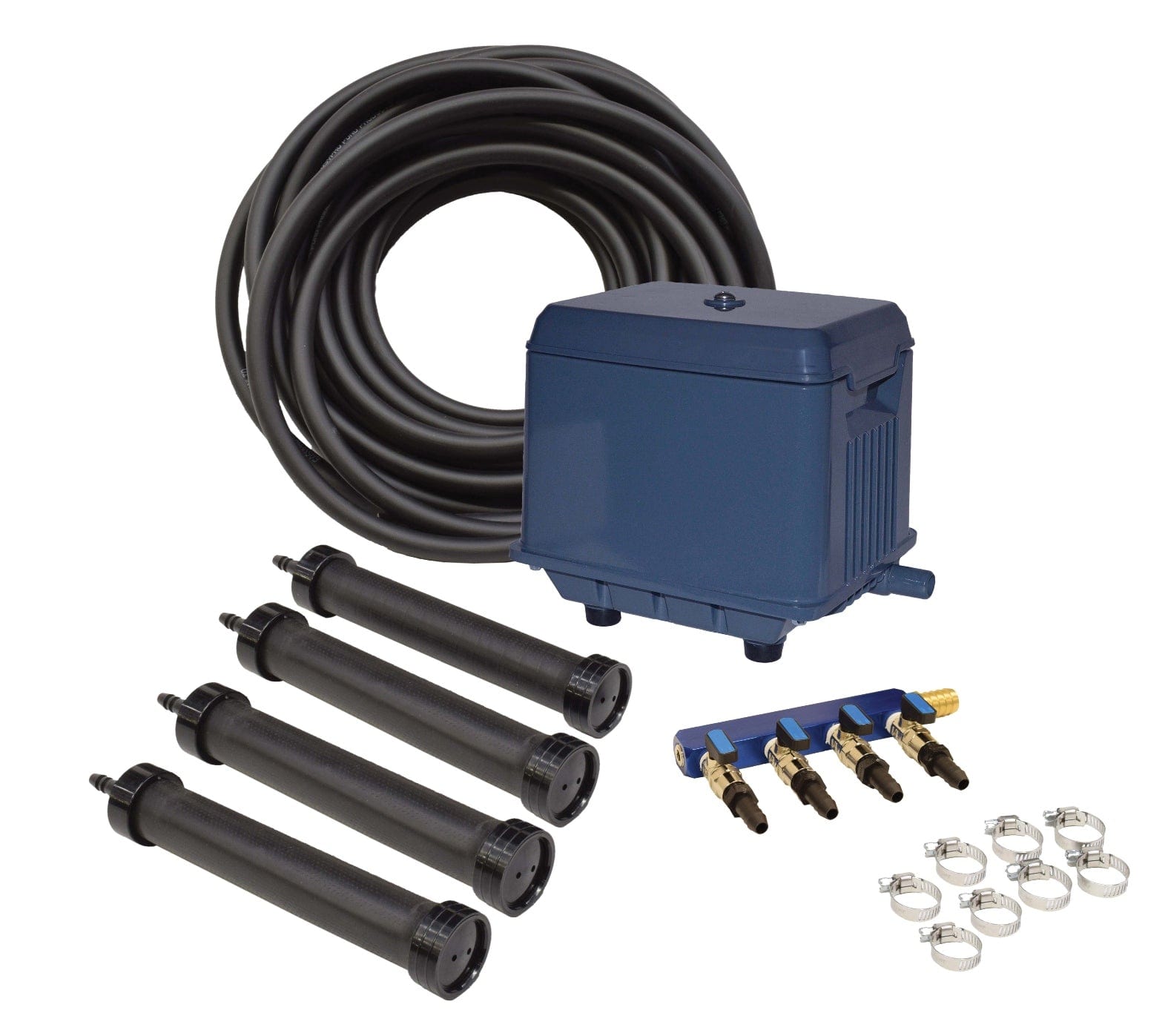

LA4 | 4,000-30,000 Gallons | 100' Quick Sink |
3.7 cfm
|
8 Feet | KLC68DK |
Fish load, filtration capacity and other factors affect actual maximum pond size
*Various compressors will perform in deeper water, this is the recommended maximum depth for
ideal performance
**See compressor instructions for warranty details
Part # | Watts | Estimated Monthly Cost | Number of 8" Diffusers |
LA1 | 23 | $1.51 | One |
LA2 | 36 | $2.37 | Two |
LA3 | 60 | $3.94 | Three |
LA4 | 70 | $4.60 | Four |
