Inlet spinweld comes installed, simply connect incoming supply line
Connecting liner takes only seconds using patented Spliner Lock system
Fill spillway with gravel/small cobble stone, plug in pump and enjoy!
Part#
Description
Inlet
Dimensions
Weight
CF12E
EasyPro Eco-Series Spillway - 12-in.
11/2" back
161/2" x 13" x 9"
5 lbs.
CF18E
EasyPro Eco-Series Spillway - 18-in.
2" both ends
22" x 141/2" x 131/2"
11 lbs.
CF23E
EasyPro Eco-Series Spillway - 23-in.
2" both ends
273/4" x 141/2" x 131/2"
12 lbs.
CF34E
EasyPro Eco-Series Spillway - 34-in.
2" both ends
371/4" x 141/2" x 131/2"
22 lbs.
CF48E
EasyPro Eco-Series Spillway - 48-in.
2" both ends
521/2" x 141/2" x 131/2"
27 lbs.

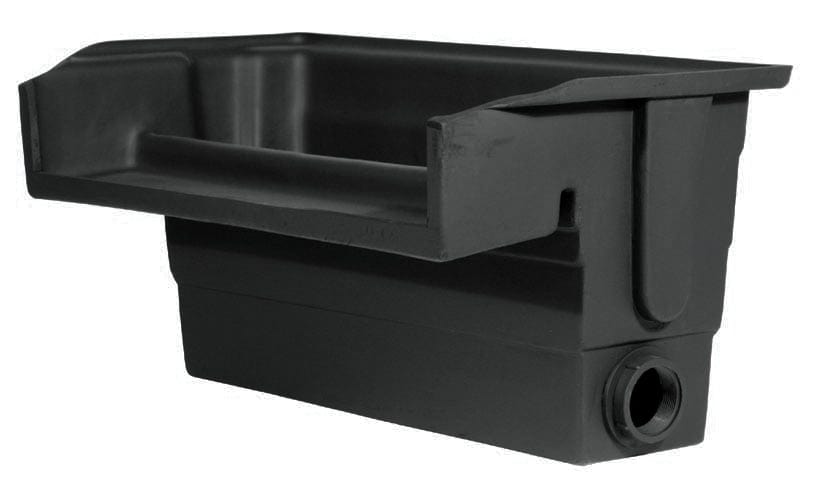

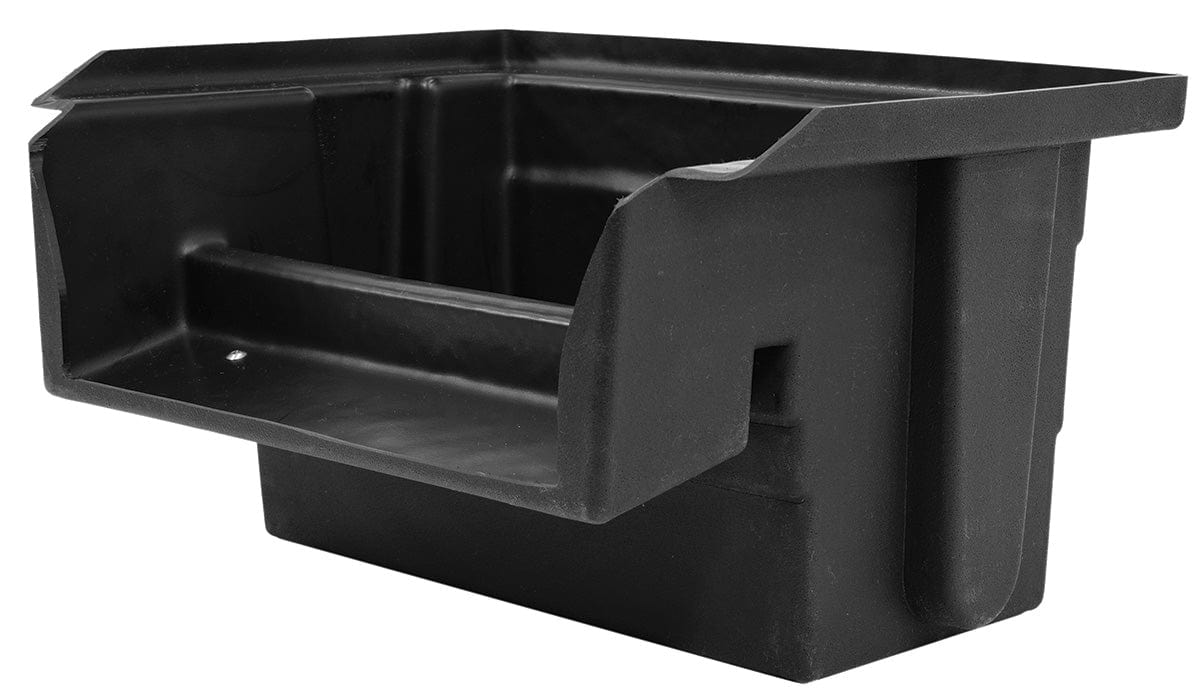

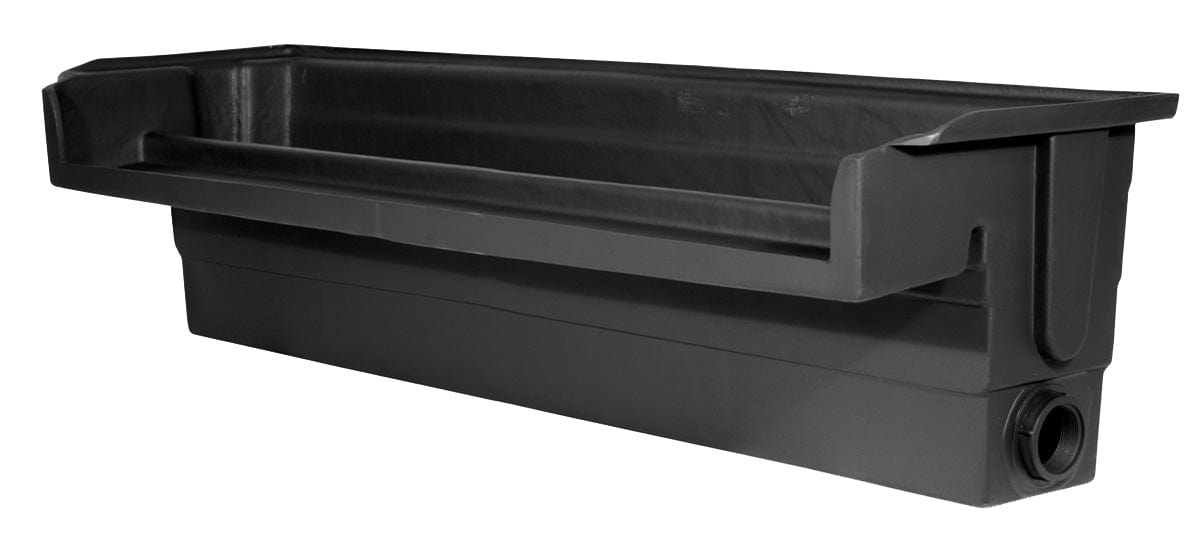

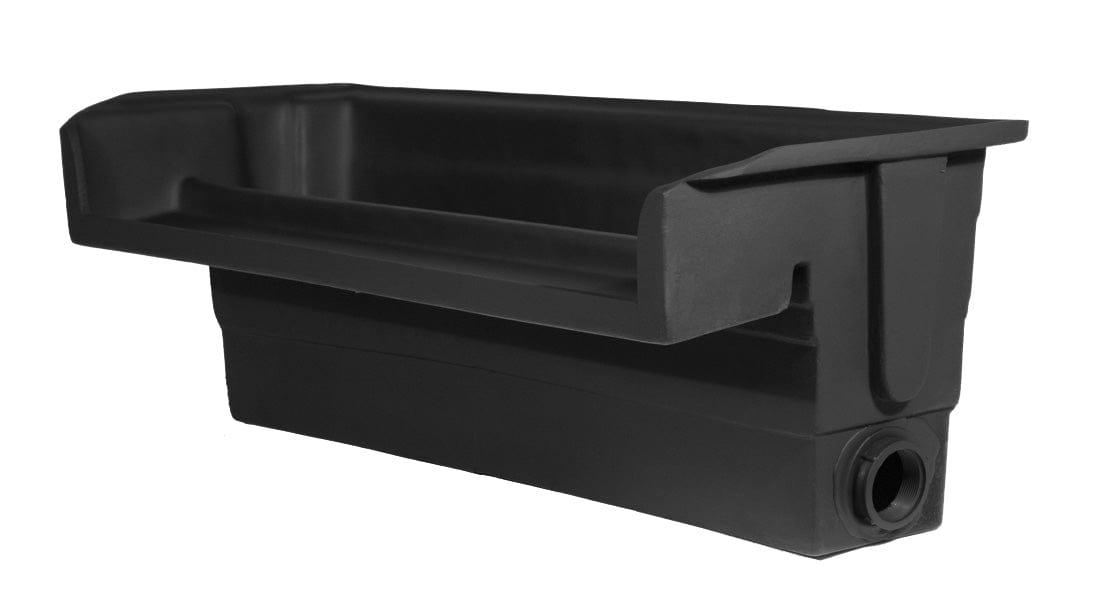

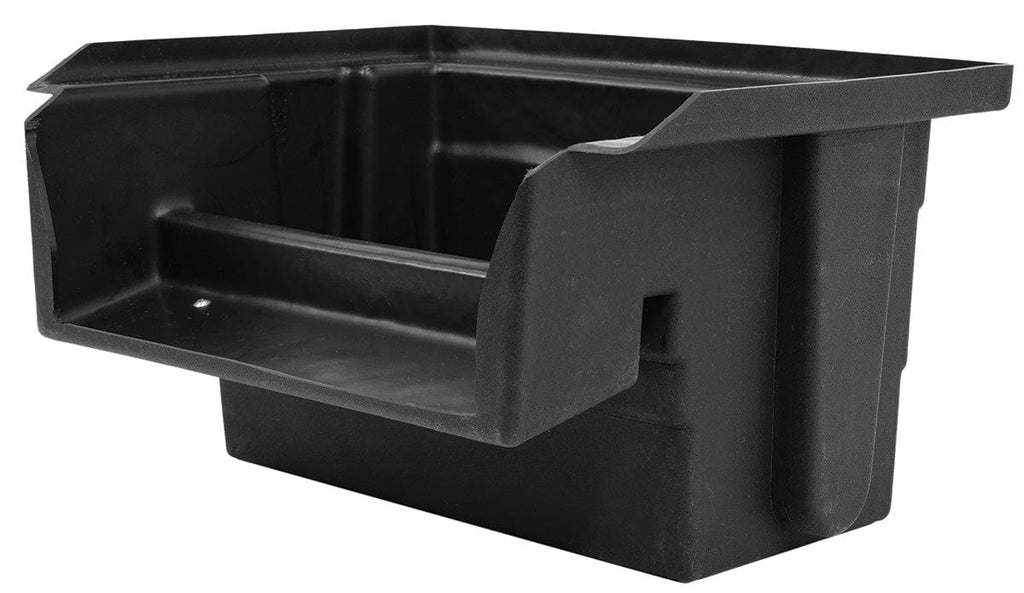

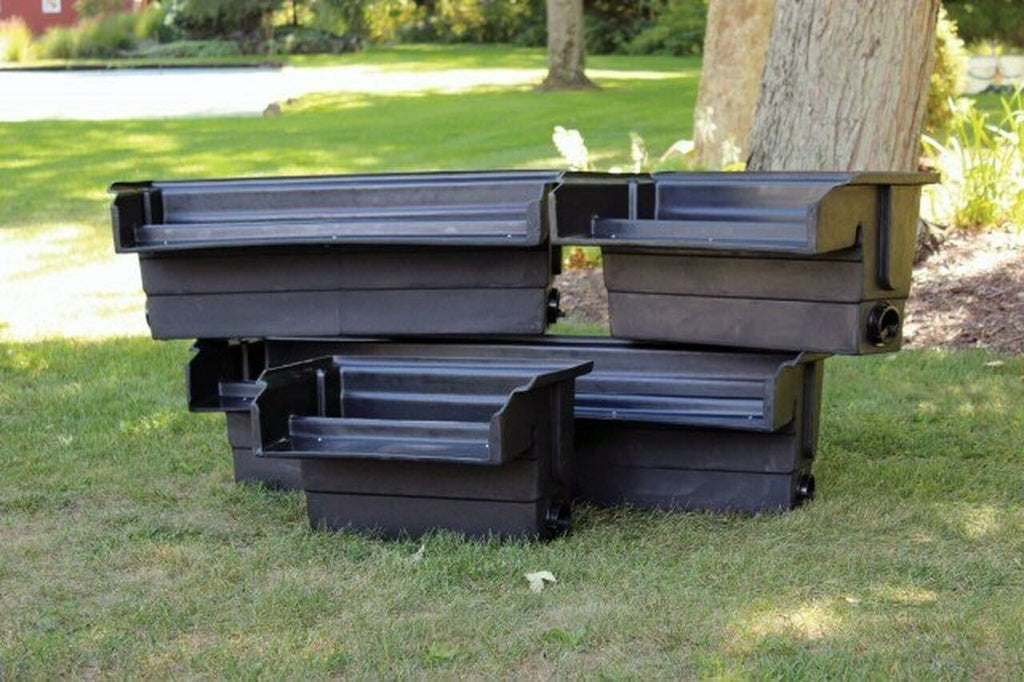

These waterfall spillways are a great, easy to install, affordable way of adding a water feature to your home. The spillways are most often used in conjunction with the pondless pump vault. The spillways are available in four different sizes, 18", 23", 34" and 48".
Simply wrap liner over the spliner bar, push up into spliner groove and twist the locking knobs into place. Fast, easy, leakproof installation without silicone, bolts or tools! Simply wrap liner over the spliner bar, push up into spliner groove and twist the locking knobs into place.
Fast, easy, leakproof installation without silicone, bolts or tools!
Roto-molded for excellent strength.
Dual Inlets - 2" bulkheads (pre-installed for you) allow for easy plumbing into either end, a plug for the unused end is included.
Includes a 4" diffuser tube that lays across the bottom of the spillway in between the inlet fittings.
Water enters from either end (or both ends) and spreads out evenly across the whole width of the spillway.
Gravel can then be used to fill the inside of the spillway creating a natural, even looking waterfall.
Recommend Accessories:
Faux stone is available for CF18E & CF23E
Filter Media Kit CF1823K
Waterfall Foam: EasyPro Waterfall Foam
Pump: EasyPro Pumps
Pump Vault: EasyPro Eco-Series Pump Vault
Lighting: EasyPro Super Bright Mini-LED 16 Diode Lights - White
EasyPro Filter Media Kit (fits CF18E/CF23E) - CF1823K
Filter media kit for 18" and 23" Eco-Series spillways allow for aiding existing filtration or for removing sediments in Just-A-Fall kits.
Not intended to replace a proper filter, but rather supplement existing filtration
Can be added to Just-A-Falls kits to aid in sediment removal from the water
Includes PVC diffuser pipe, two mesh bags of media and a strip of 2" solids filter media
